Home >> Oldsmobile >> 1987 >> Toronado V6-231 3.8L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Cable >> Locations

Ignition Cable: Locations

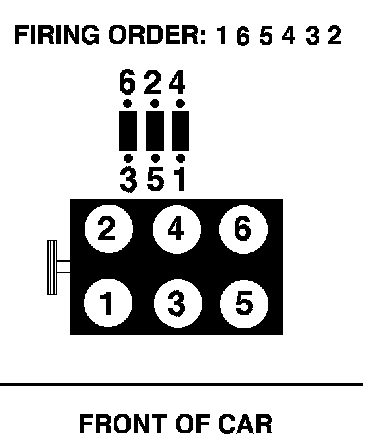

Firing Order - 3.0, 3.8L Type I Ignition:

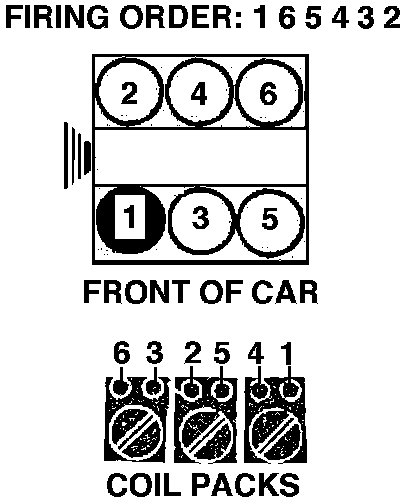

FIRING ORDER 3.8L Type II Ignition:
