Direct Ignition System
Direct Ignition System

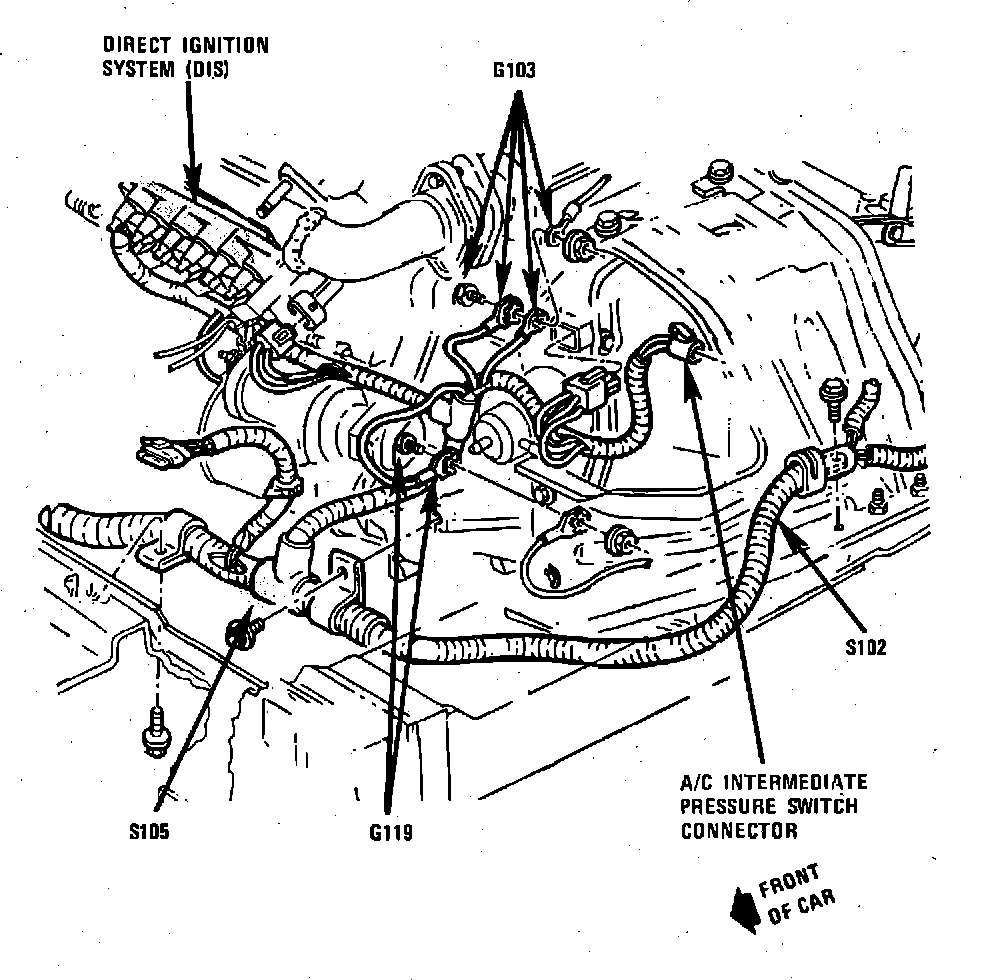

Direct Ignition System.:
Front Of Engine
Applicable to: 1989 Cutlass Supreme w/V6-173/2.8L
