Home >> Oldsmobile >> 1990 >> Cutlass Ciera Cruiser L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Dimmer Switch

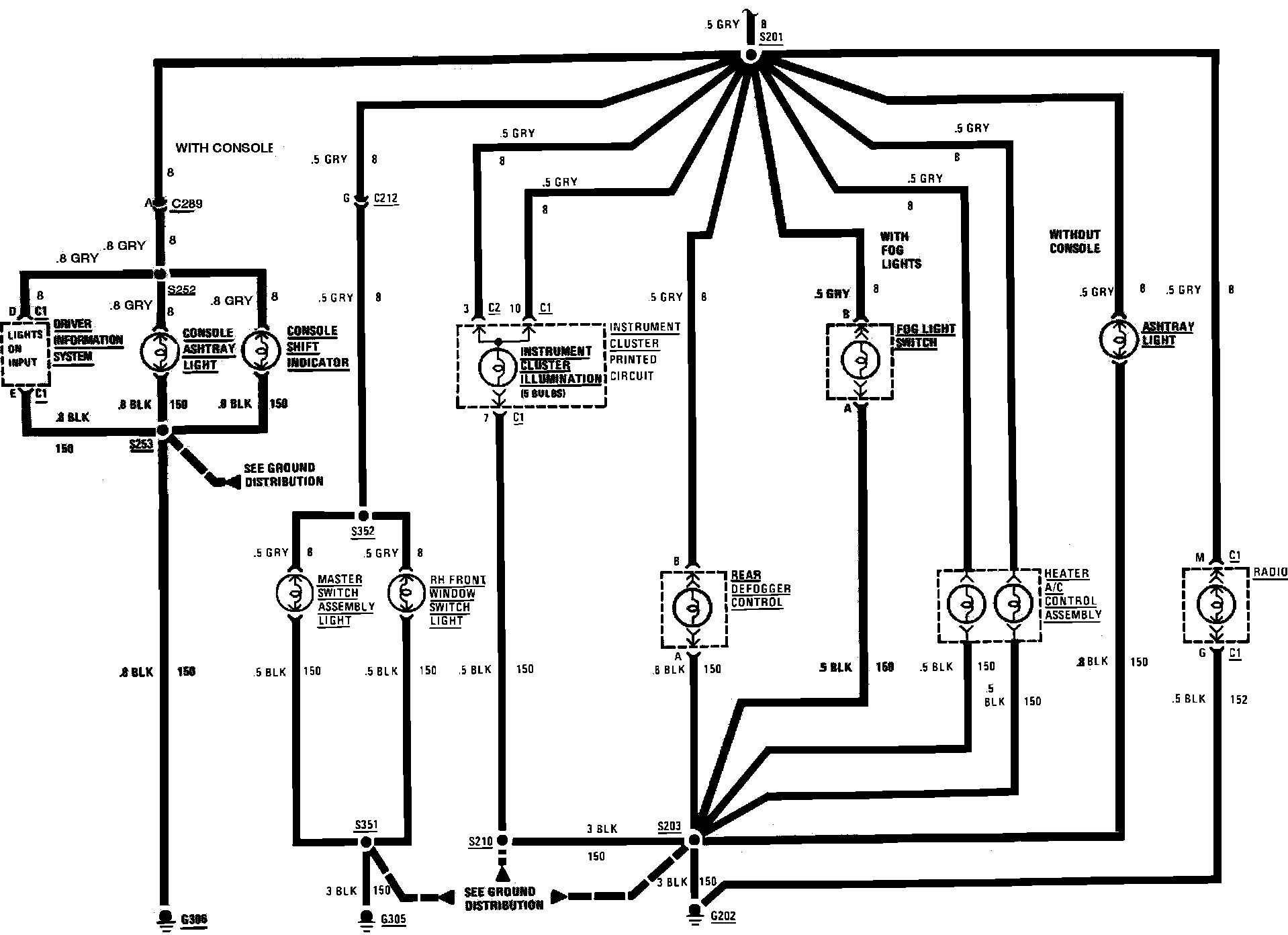

Dimmer Switch

Interior Lights Dimming:



Interior Lights Dimming:
