Central Power Supply: Locations

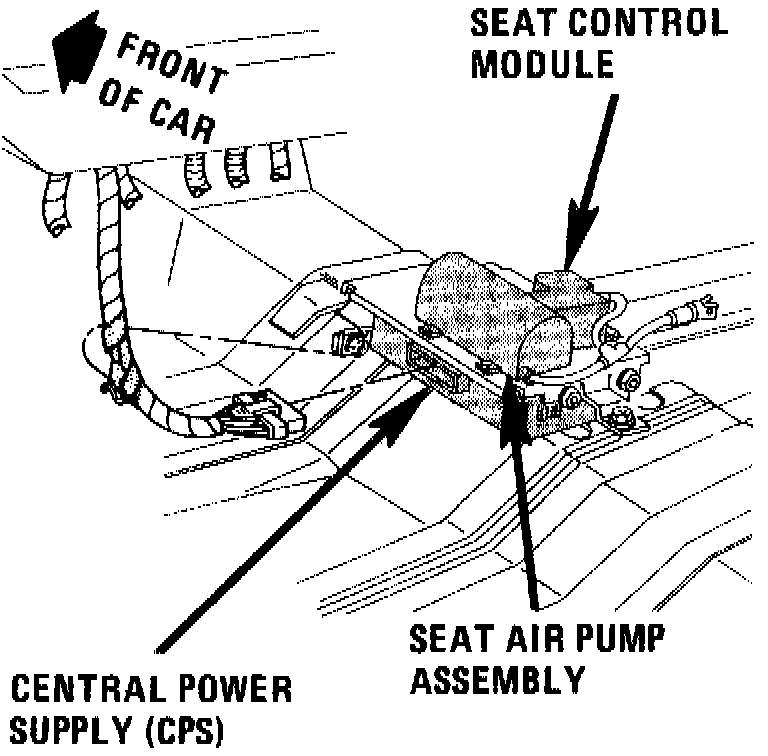

Below Center Console:






The Central Power Supply (CPS) is located rear of console.
