Cruise Control
>>
Cruise Control Module and Ground Distribution
Cruise Control Module and Ground Distribution

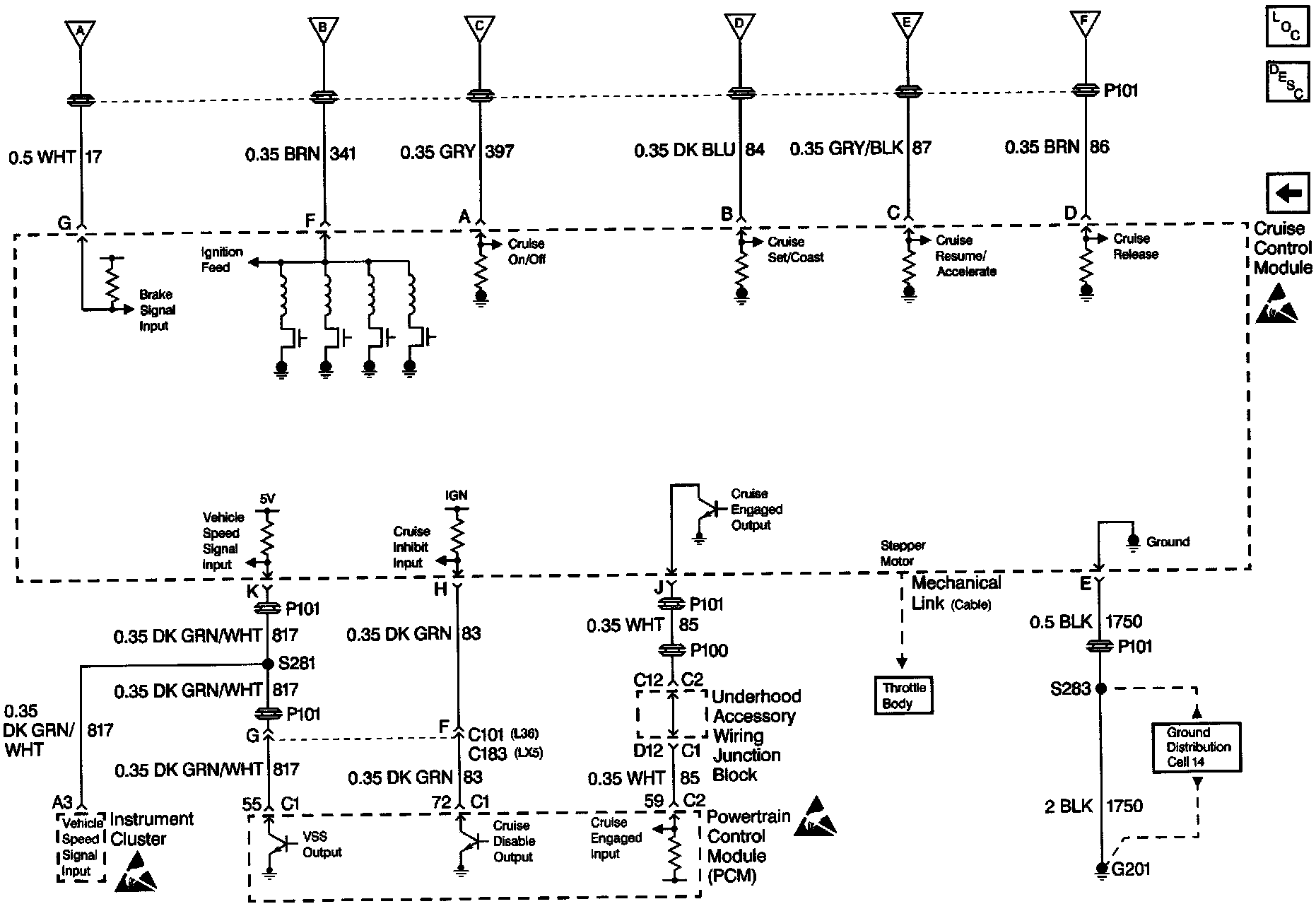

Cruise Control Schematics: Cruise Control Module And Ground Distribution:
