Engine Speed Sensor: Locations

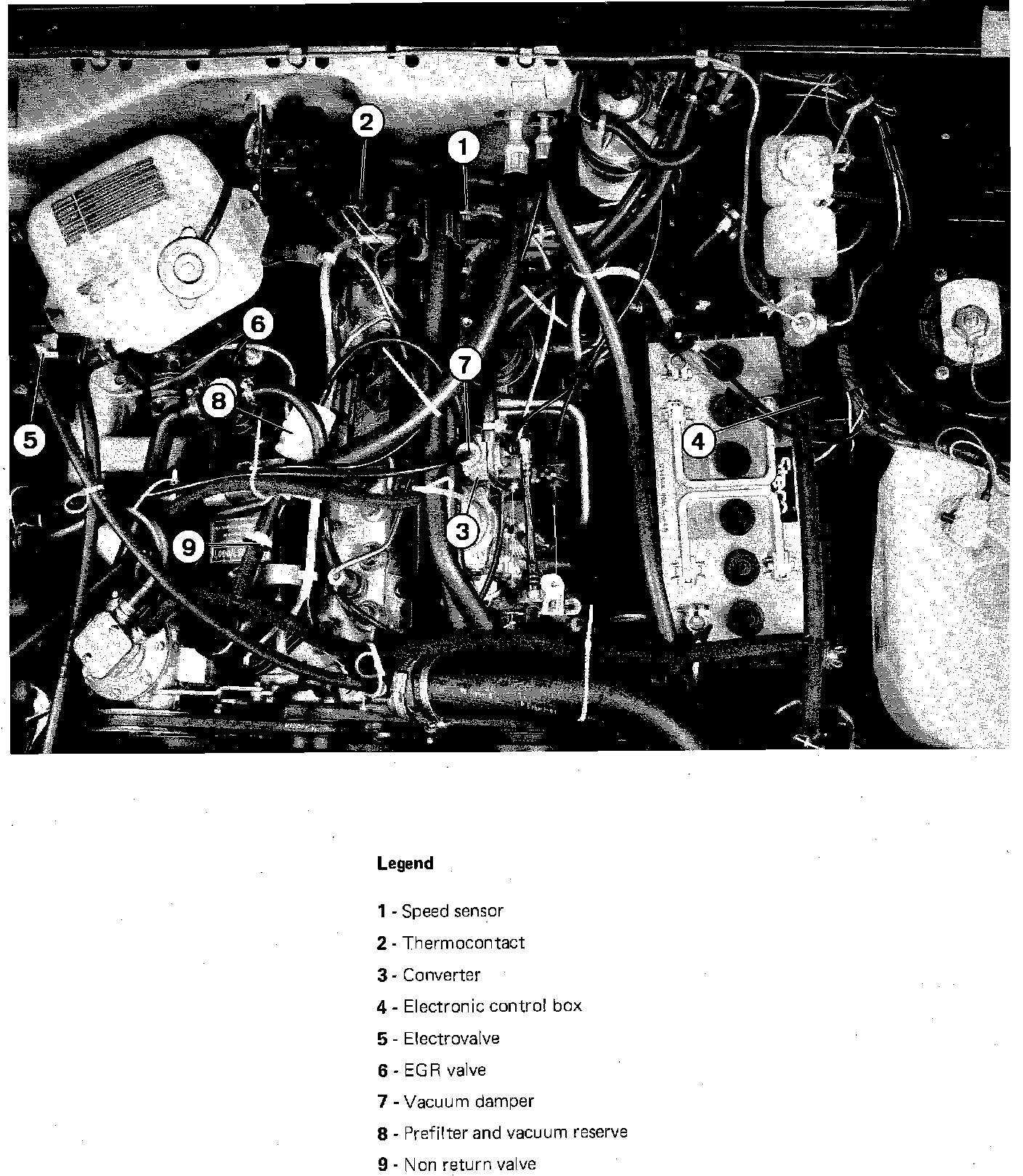

Engine Compartment Component Locations.:




Rear Of Engine Compartment

Applicable to: 604 w/XD2S Engine
