405 L4-1905cc 1.9L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
>>
Engine Compartment Components
Engine Compartment Components

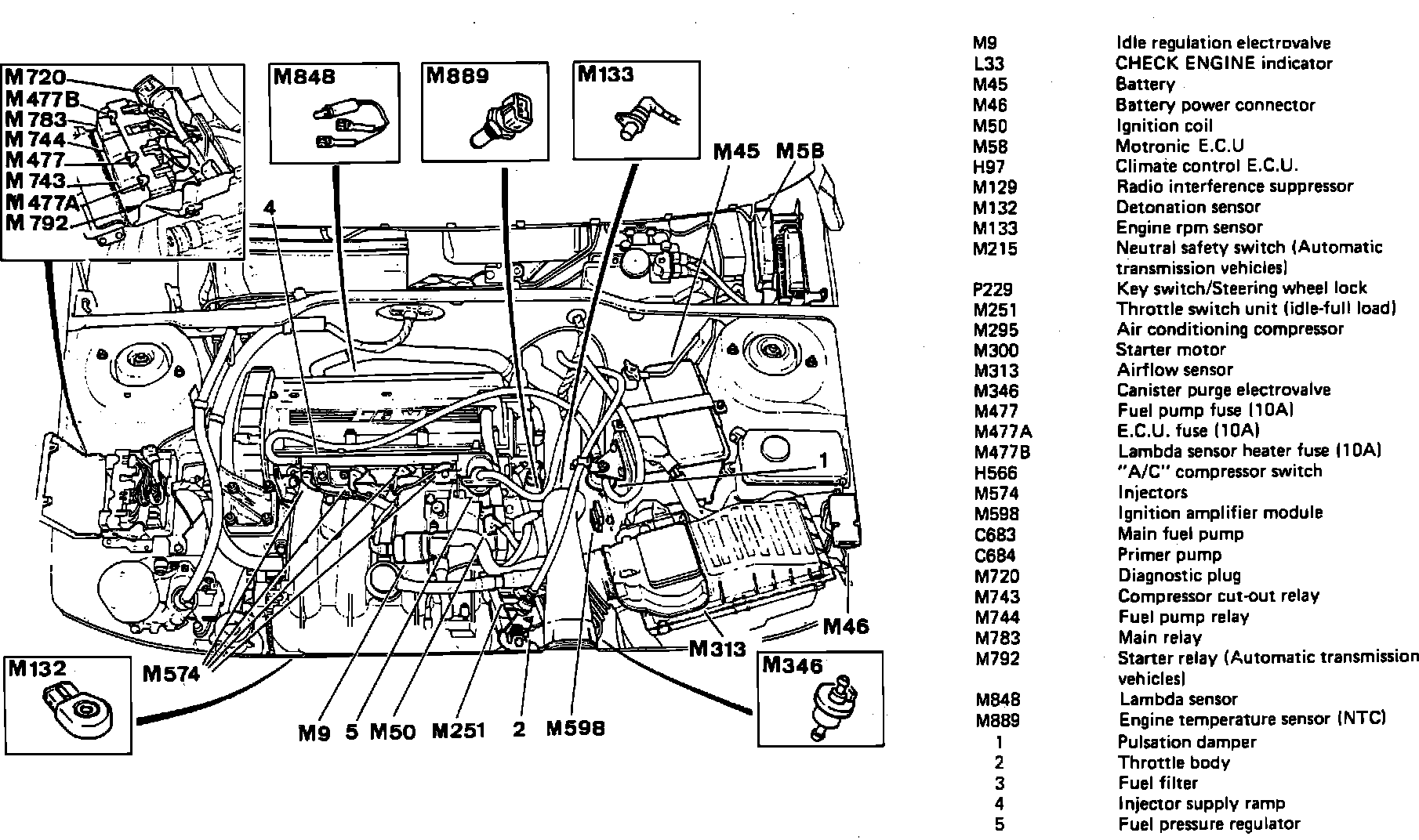

Fig. 1 Engine Compartment:
