Home
>>
Peugeot
>>
1990
>>
505 L4-2165cc ZDJL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
>>
Engine Compartment Components
Engine Compartment Components

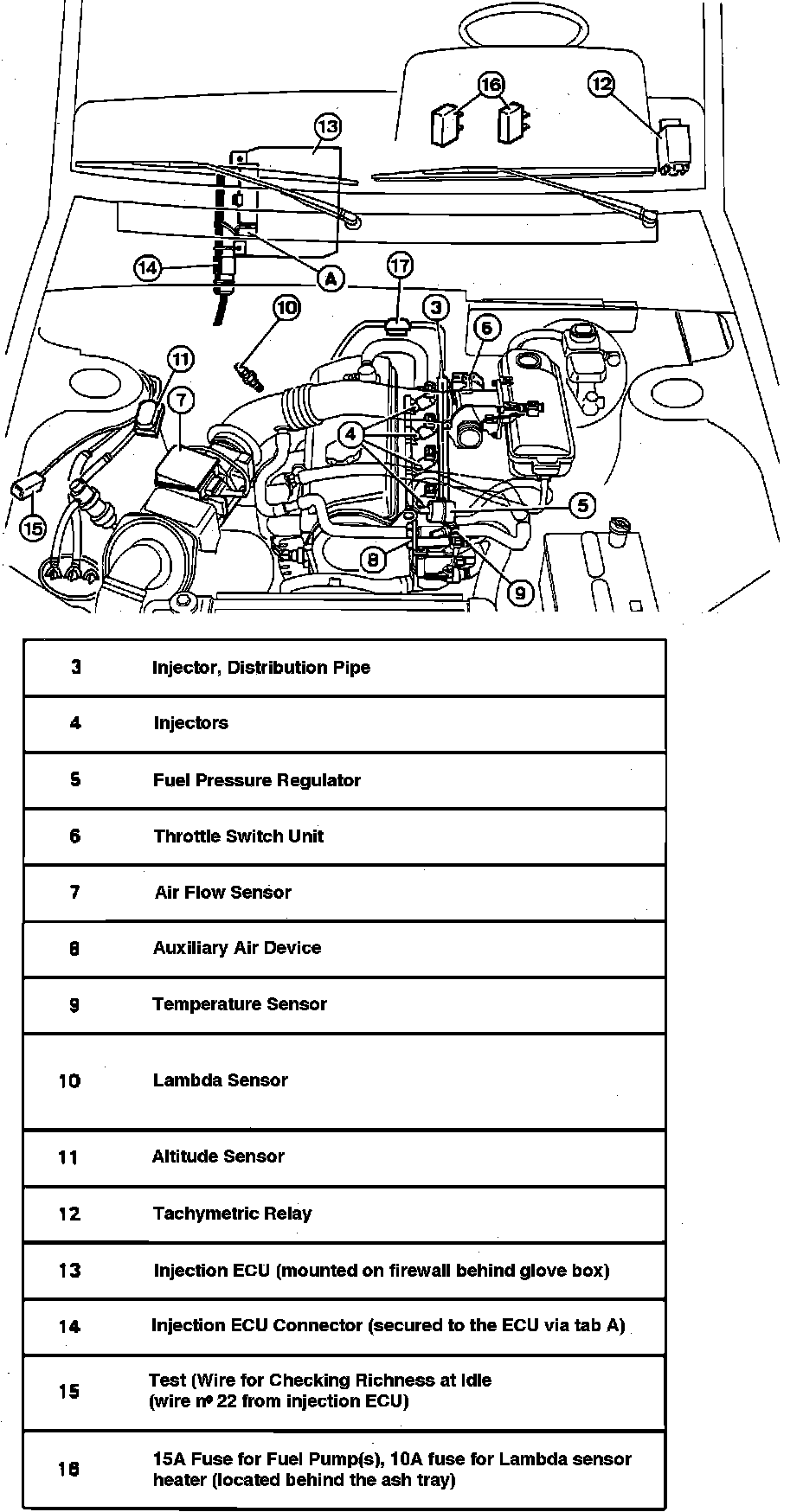

Fig. 4 Engine Compartment:
