Component Testing

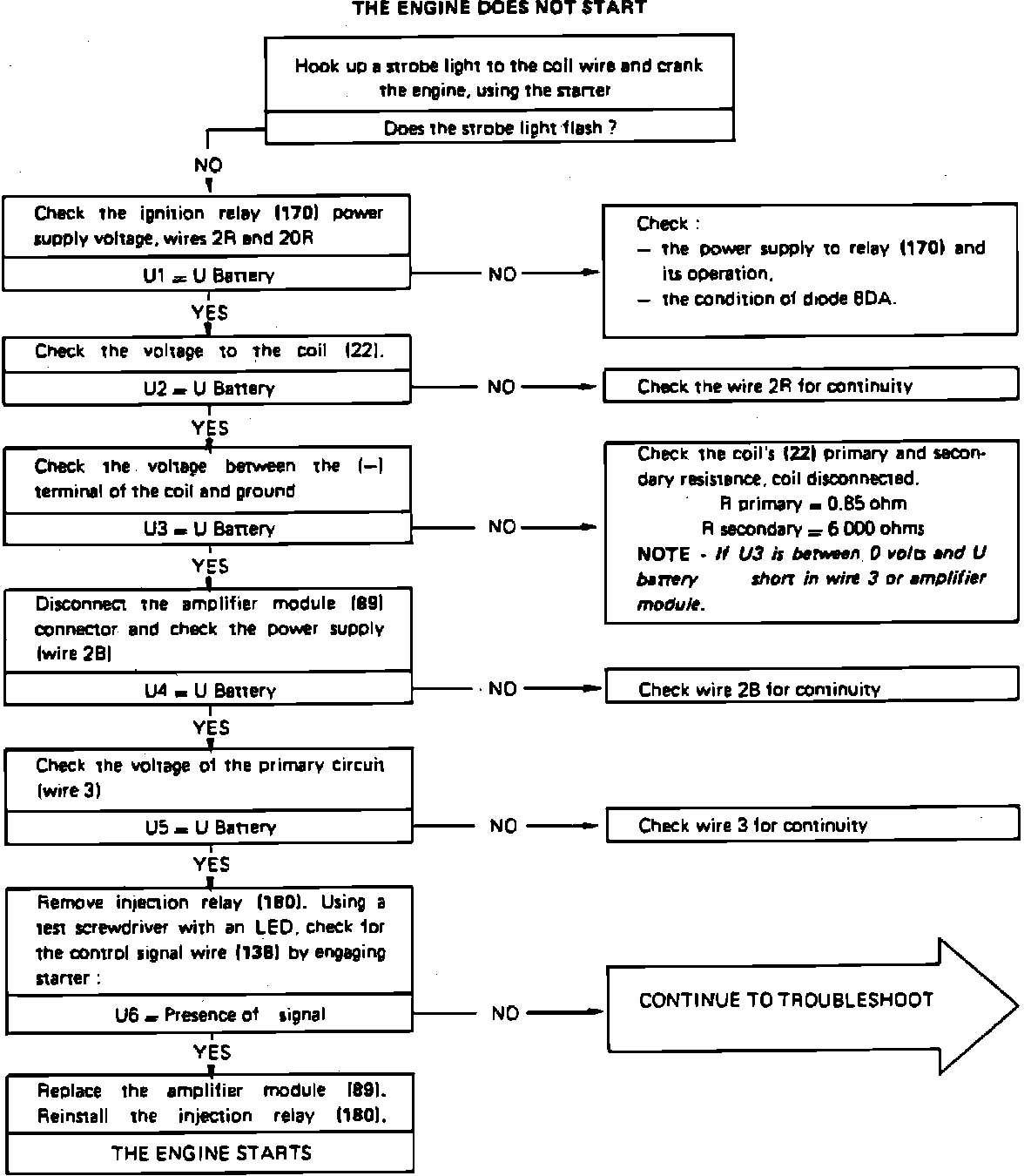

Fig. 1 Troubleshooting (Part 1 of 3):

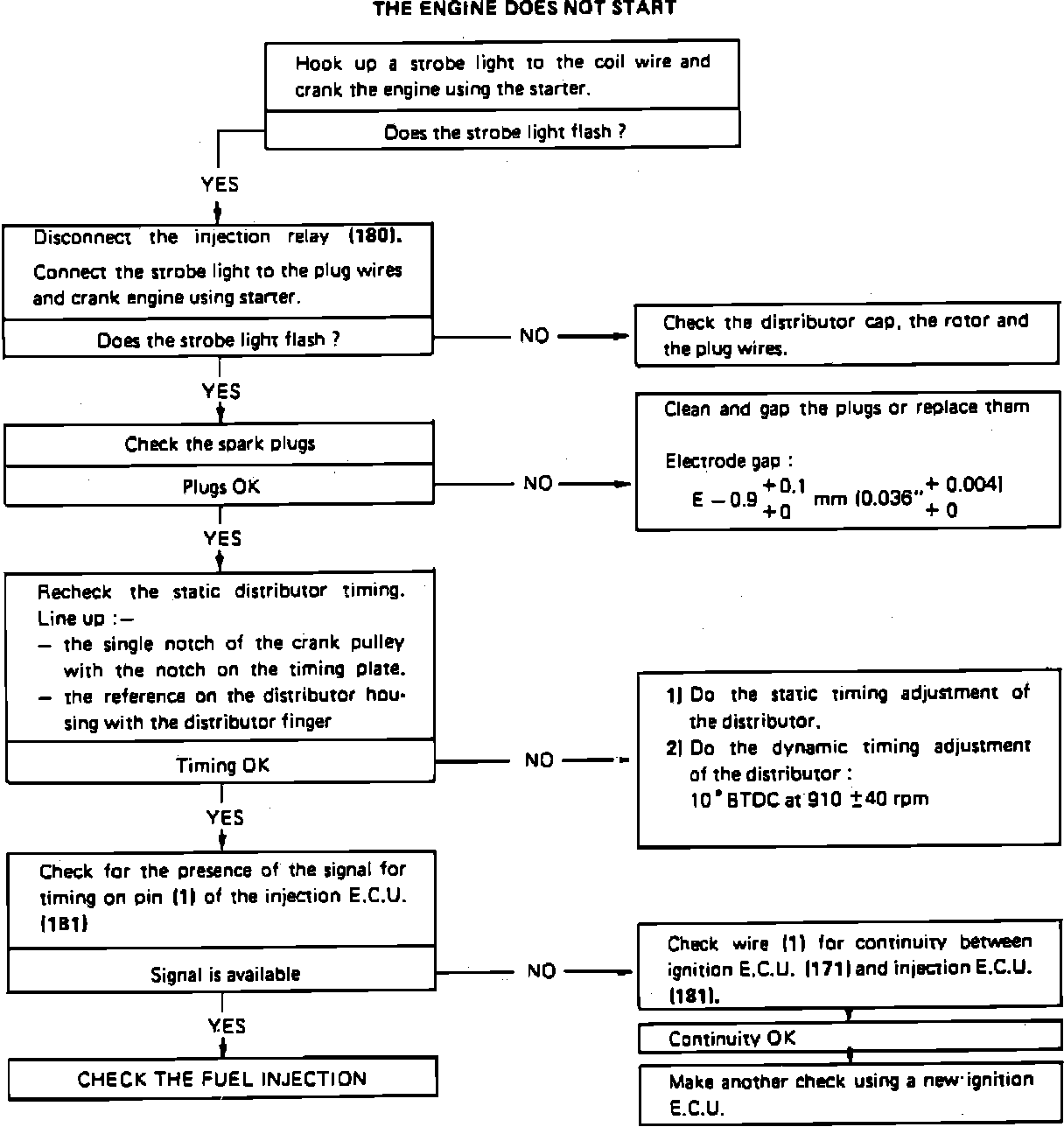

Fig. 1 Troubleshooting (Part 2 Of 3):

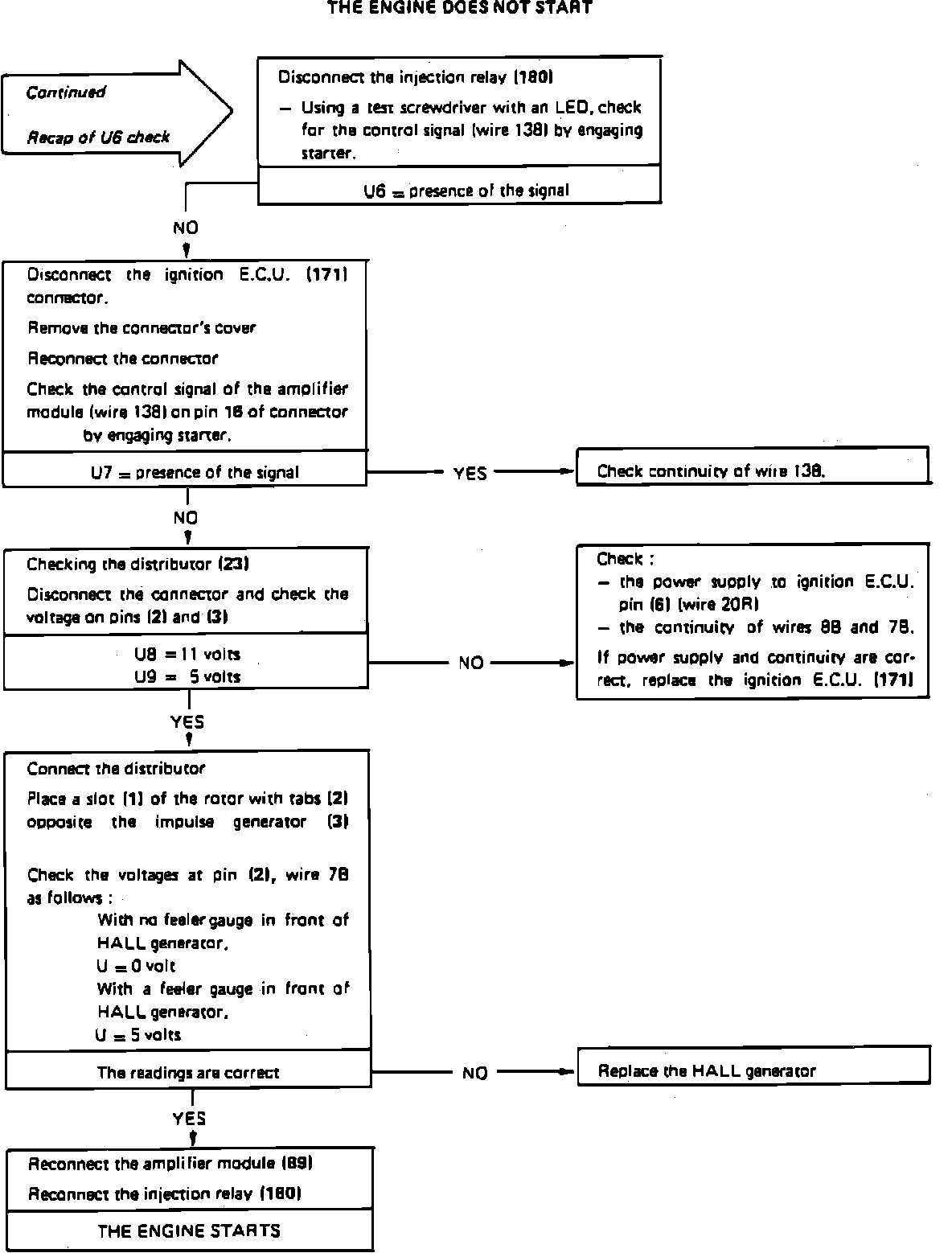

Fig. 1 Troubleshooting (Part 3 Of 3):

Refer to troubleshooting charts, Figs. 1a, 1b, & 1c and 2, and ELECTRICAL AND ELECTRONIC DIAGRAMS for ignition system wiring circuits.
