Cruise Control: Testing and Inspection

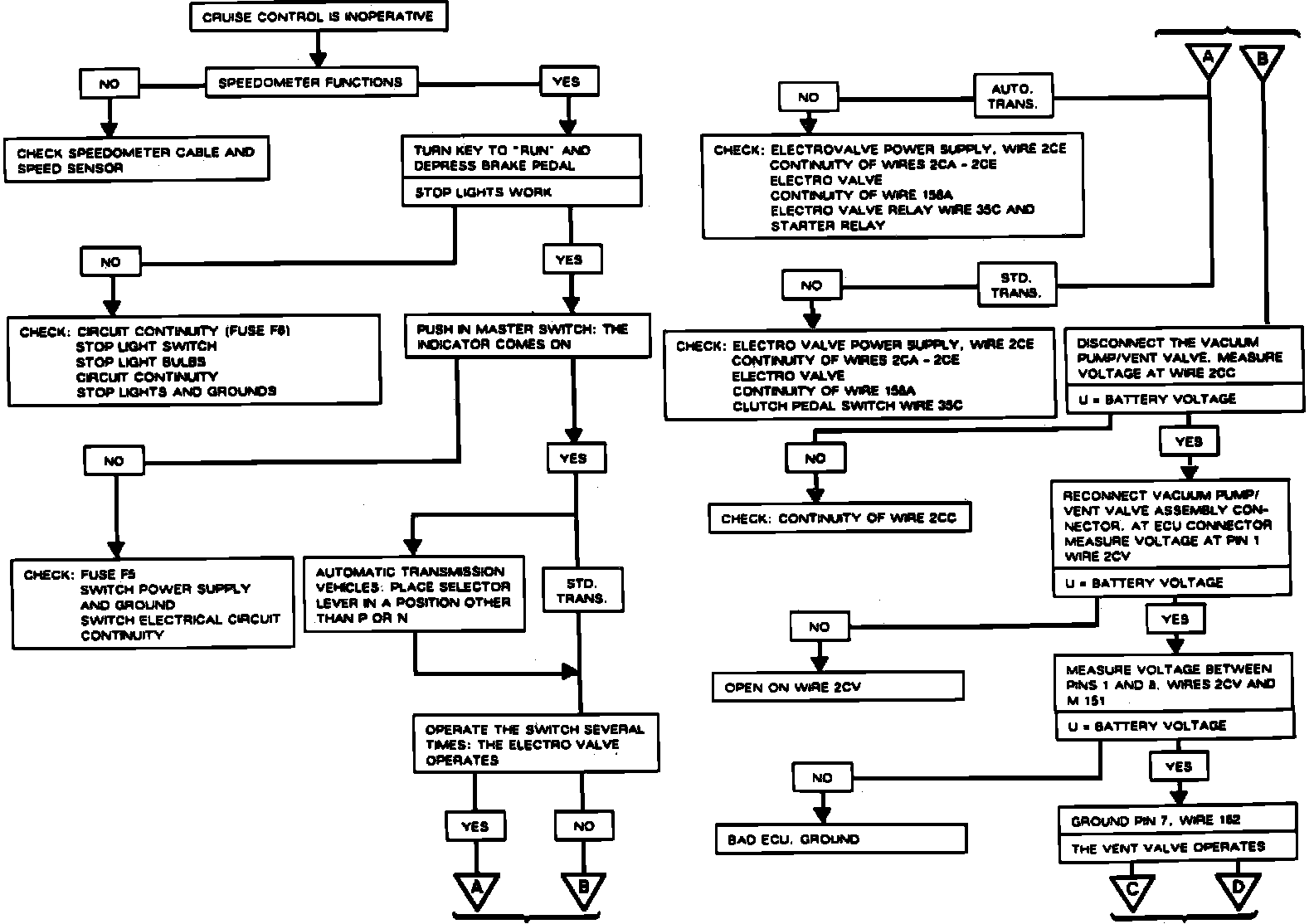

Fig. 1 Troubleshooting Chart (Part 1 Of 3):

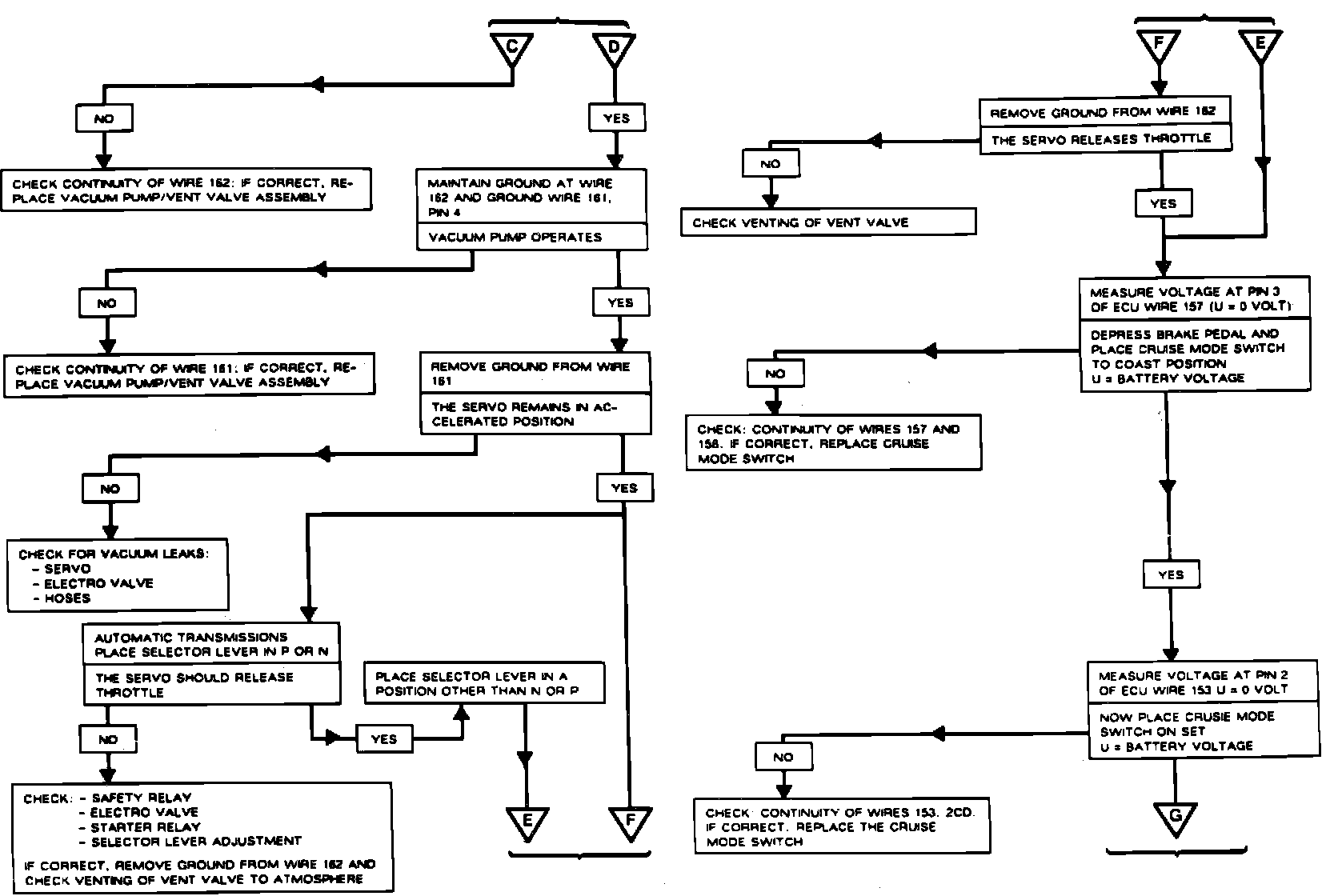

Fig. 1 Troubleshooting Chart (Part 2 Of 3):

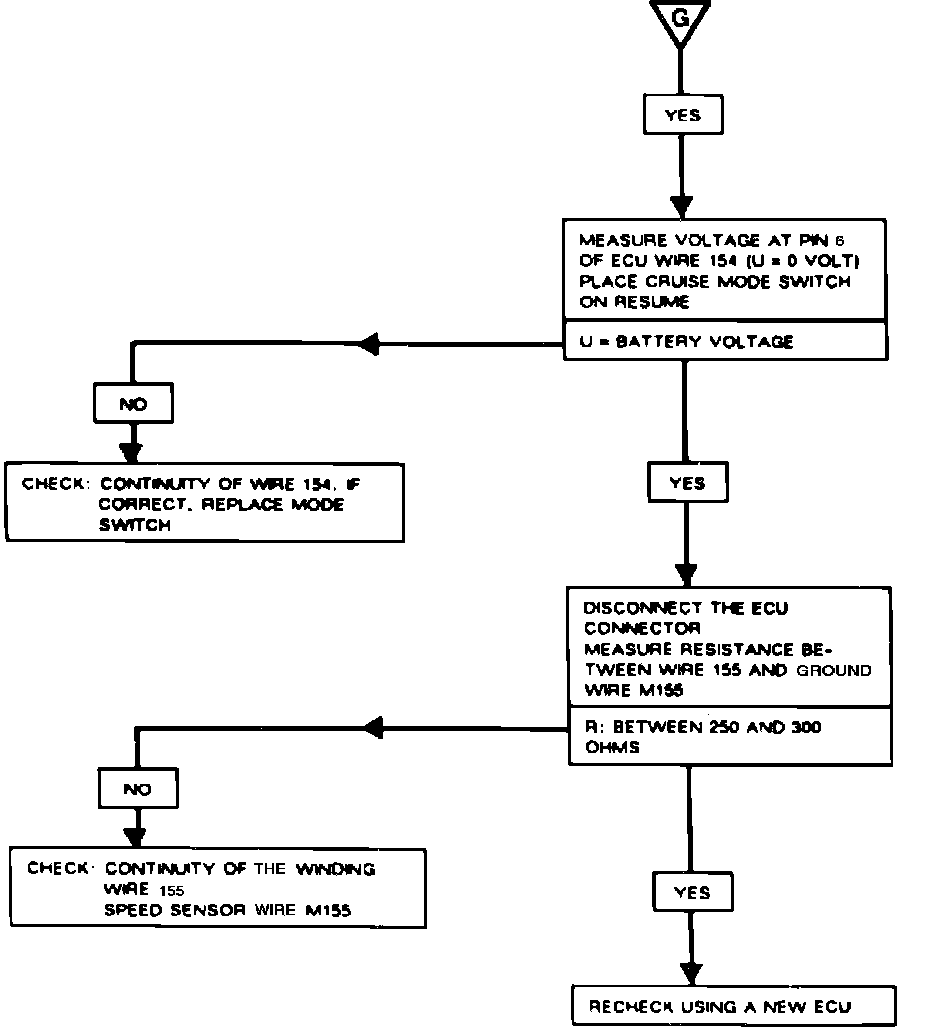

Fig. 1 Troubleshooting Chart (Part 3 Of 3):

Refer to Fig. 1, for troubleshooting charts and SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC DIAGRAMS for wiring circuits.
