Home >> Plymouth >> 1992 >> Laser FWD L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Exterior Lighting Module >> Without Daytime Running Lights

Without Daytime Running Lights

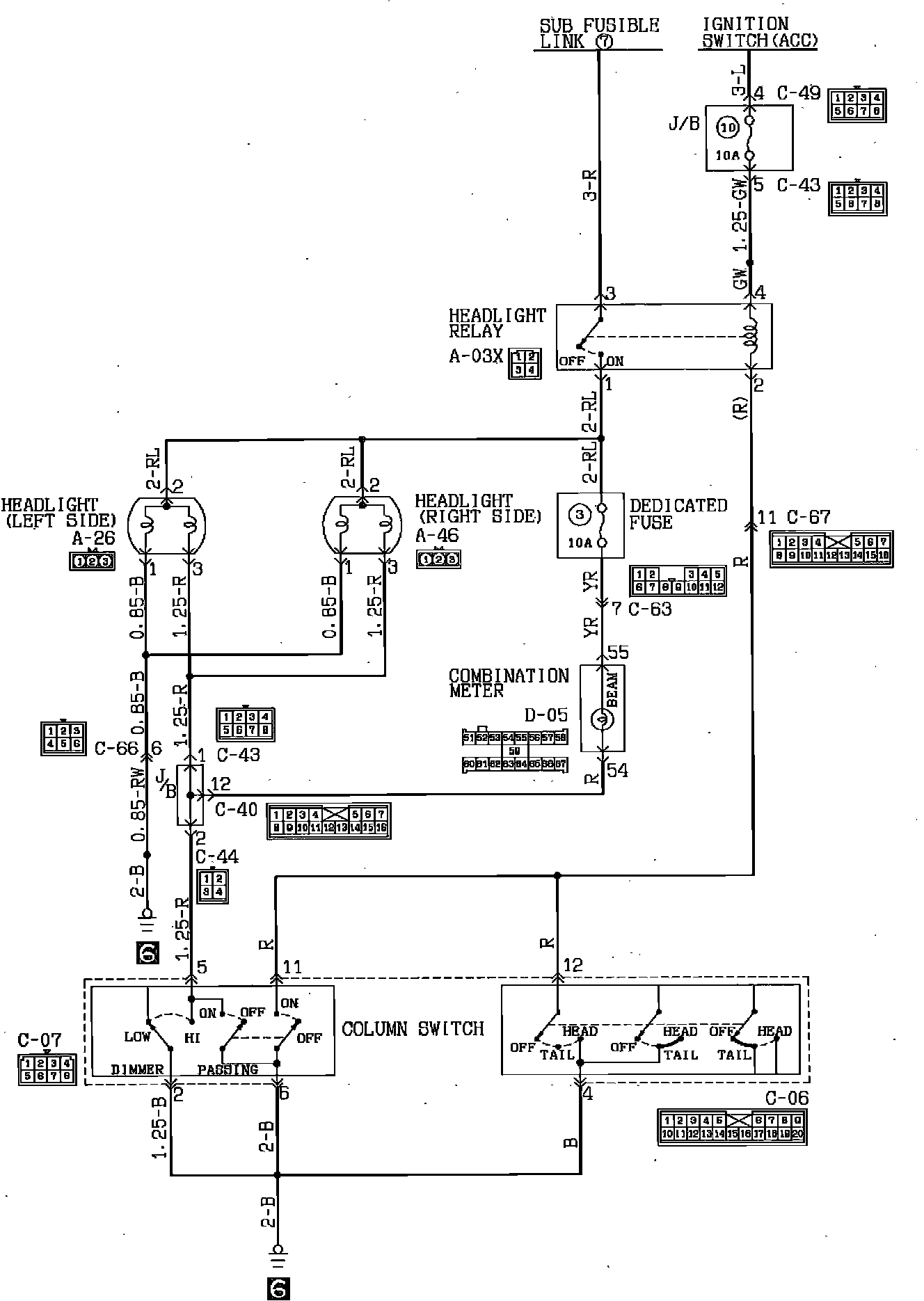

Headlamps (Without Daytime Running Lamps):
