Plymouth
>>
1994
>>
Laser AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Sub-Fusible Link
Sub-Fusible Link

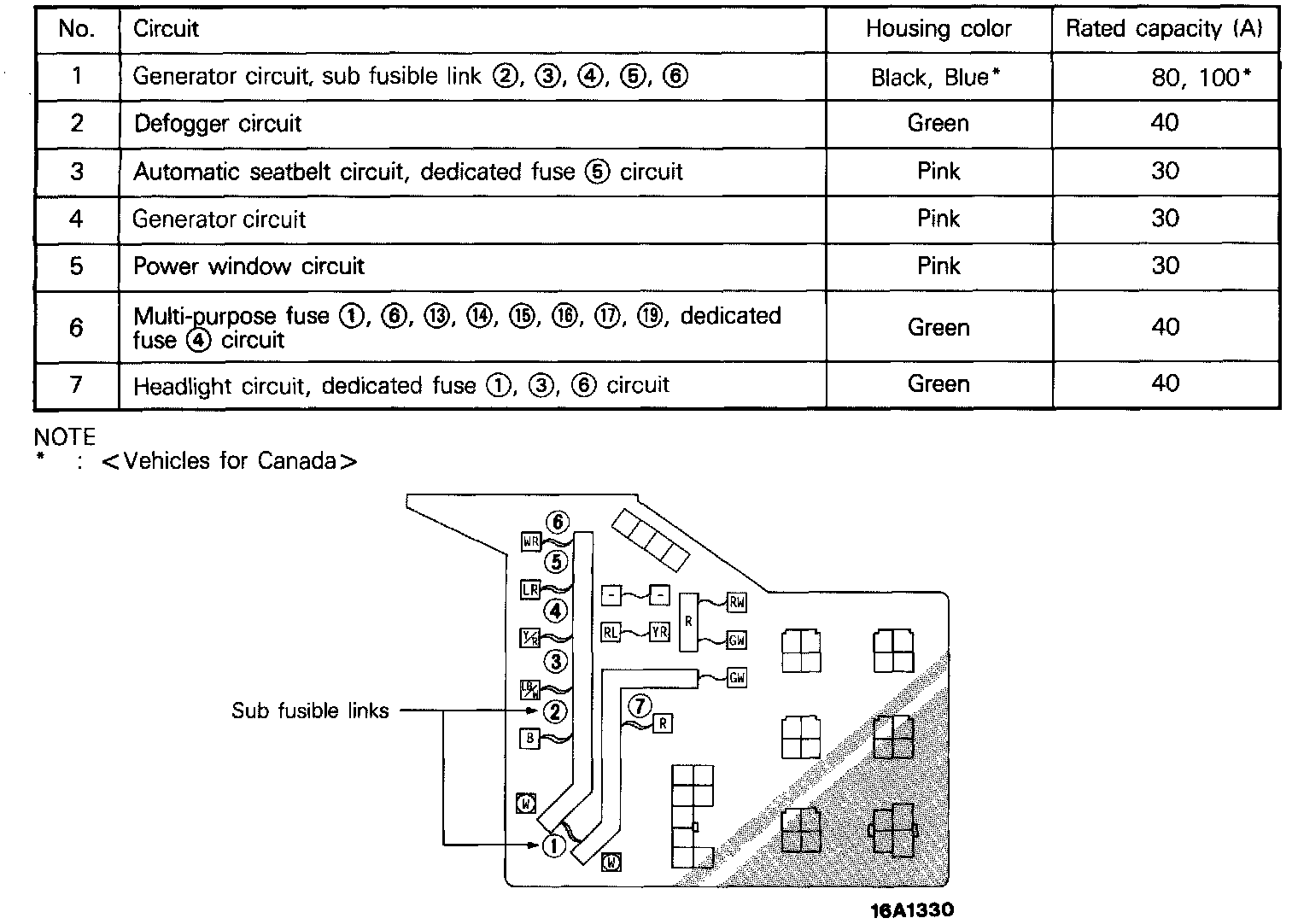

Sub-Fusible Link (Relay Box Inside Engine Compartment):
