Home >> Plymouth >> 1999 >> Breeze L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Complete Body and Chassis Connector Views >> Sheet 8W-80-13

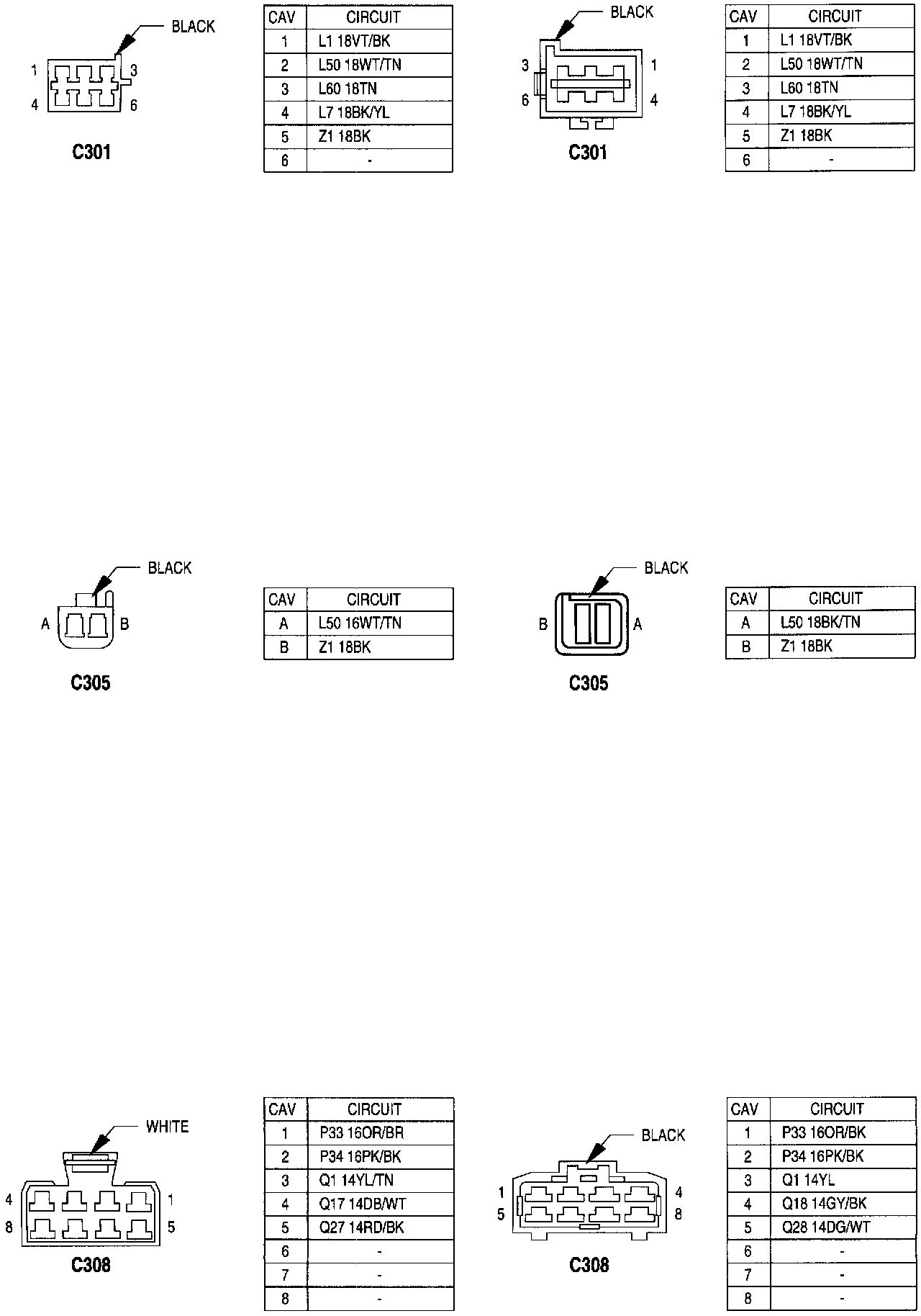

Sheet 8W-80-13

8w-80-13:
