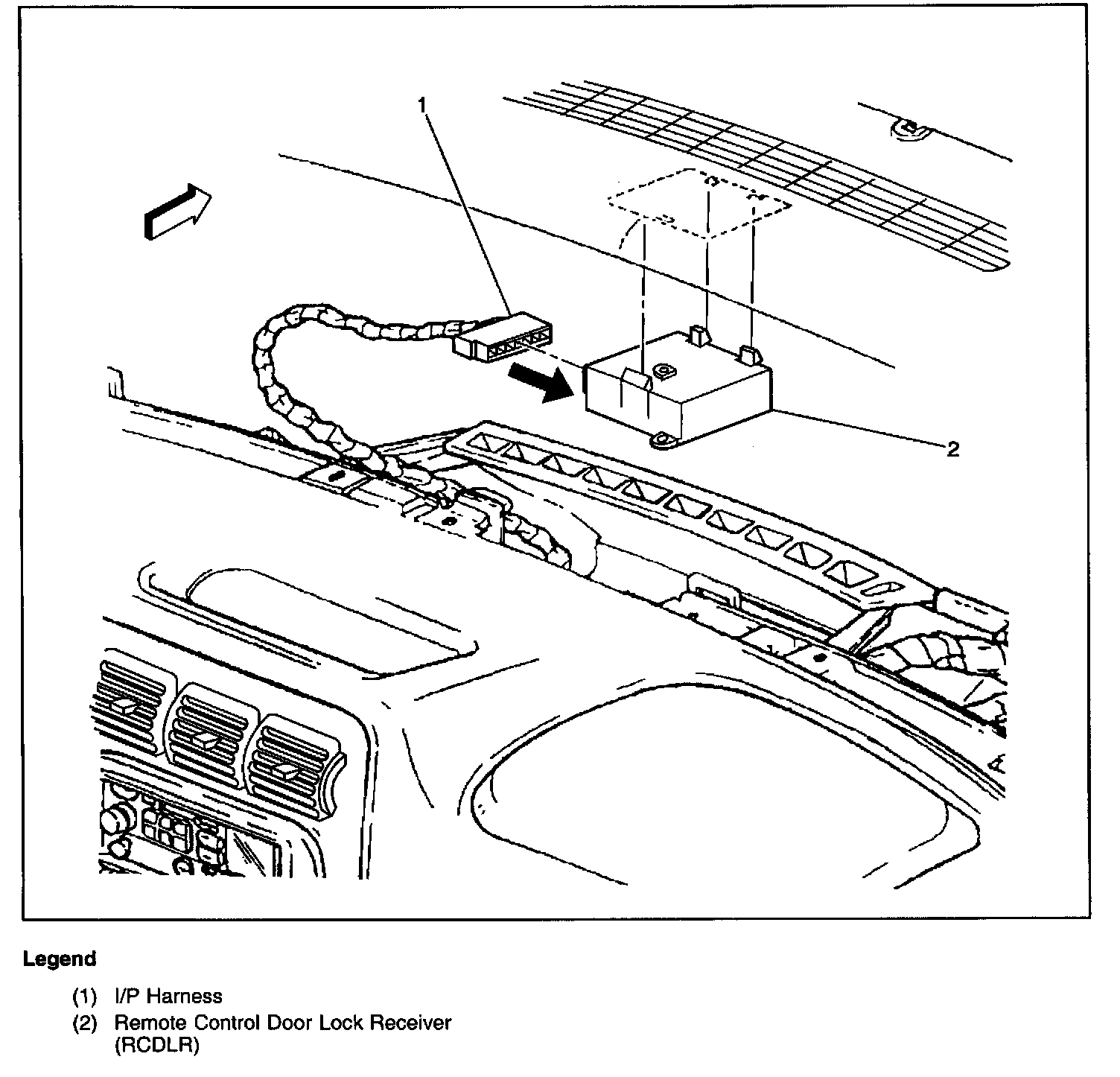

Remote Control Door Lock Receiver (RCDLR)

Center Of IP, Below Upper Panel Trim:






Behind the center of the IP, on the underside of the IP trim, near the windshield defrost vents
