Control Assembly: Service and Repair

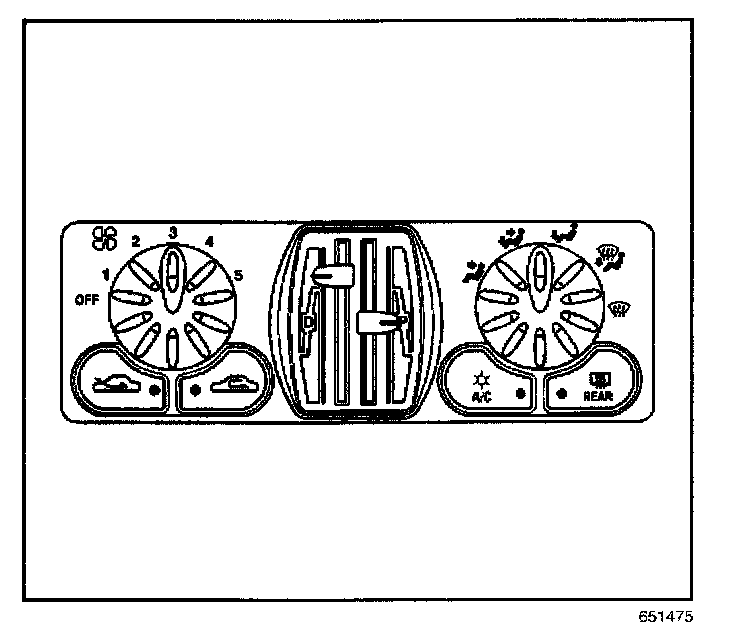

HVAC CONTROL MODULE REPLACEMENT (PONTIAC)

REMOVAL PROCEDURE




1. Remove the instrument panel accessory trim plate.




3. Pull the HVAC control module straight out from the instrument panel.
4. Disconnect the HVAC control module electrical connectors.

INSTALLATION PROCEDURE




1. Connect the HVAC control module electrical connectors.
2. Push the HVAC control module into instrument panel opening.

NOTE: Refer to Fastener Notice in Service Precautions.




3. Install the HVAC control module retaining screws.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).

4. Install the instrument panel accessory trim plate.
