Inspection

The following procedure applies to second row captains' chairs in vans or second row captains' chairs or second row split bench seats in Aztek's. When equipped with these types of seats, there will be FOUR anchor locations to inspect in each vehicle.

1. Open the side door to access the seats in the second row.

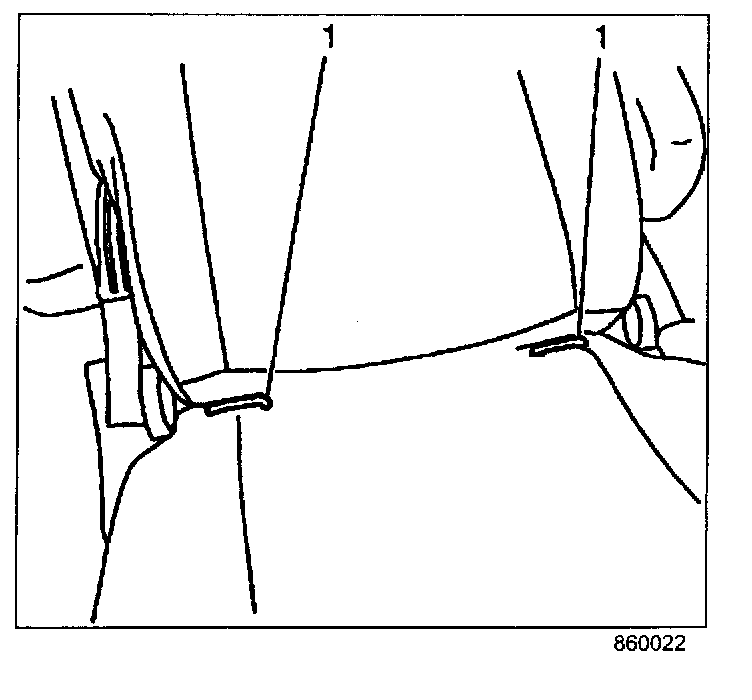

2. Fully recline the seat back to access the two anchors (1) in the seat. On vehicles with a split bench, tool access for the inspection can be improved by tilting the seat back forward.

IMPORTANT:
The size of the slot in the adjusting knob on the handle of J-45920 (Car Seat Anchor Resizer) is a calibrated dimension. This calibrated dimension is used to determine whether the thickness of each seat anchor is oversized or not in the next step.

Measure the thickness of the seat anchor by inserting it into the calibrated slot in the adjusting knob on the handle of J-45920. Repeat the measuring process on the other THREE seat anchors in the second row of the vehicle





^ If an anchor fits completely inside the calibrated slot, NO resizing is necessary on THAT anchor location.

^ If an anchor does NOT fit completely inside the calibrated slot, resizing IS necessary on THAT anchor location.
