129. Engine Flywheel Installation

Engine Flywheel Installation

Special Tools
* EN-46106 - Engine Flywheel Holding Tool
* J-45059 - Angle Meter

For equivalent regional tools, refer to Special Tools (Special Tools)

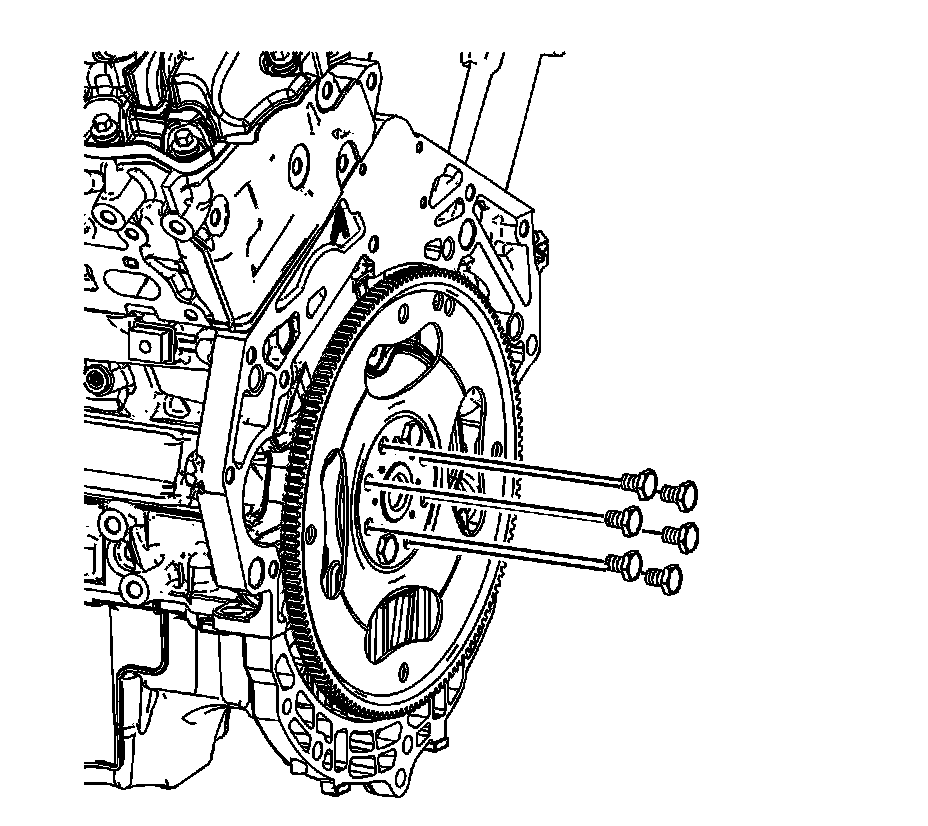

1. Place the engine flywheel in position on the crankshaft.




2. Install 2 NEW bolts in location at the top and bottom of the engine flywheel bolt pattern allowing the engine flywheel to hang in position.




3. Install the EN-46106 - tool.





Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the remaining NEW engine flywheel bolts and tighten to 30 Nm (22 lb ft) and an additional 45 degrees using the J-45059 - meter.




5. Remove the EN-46106 - tool.
