Home >> Pontiac >> 1983 >> 6000 V6-173 2.8L VIN X 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Power Distribution Wiring Circuit >> Part 1 of 2

Part 1 of 2

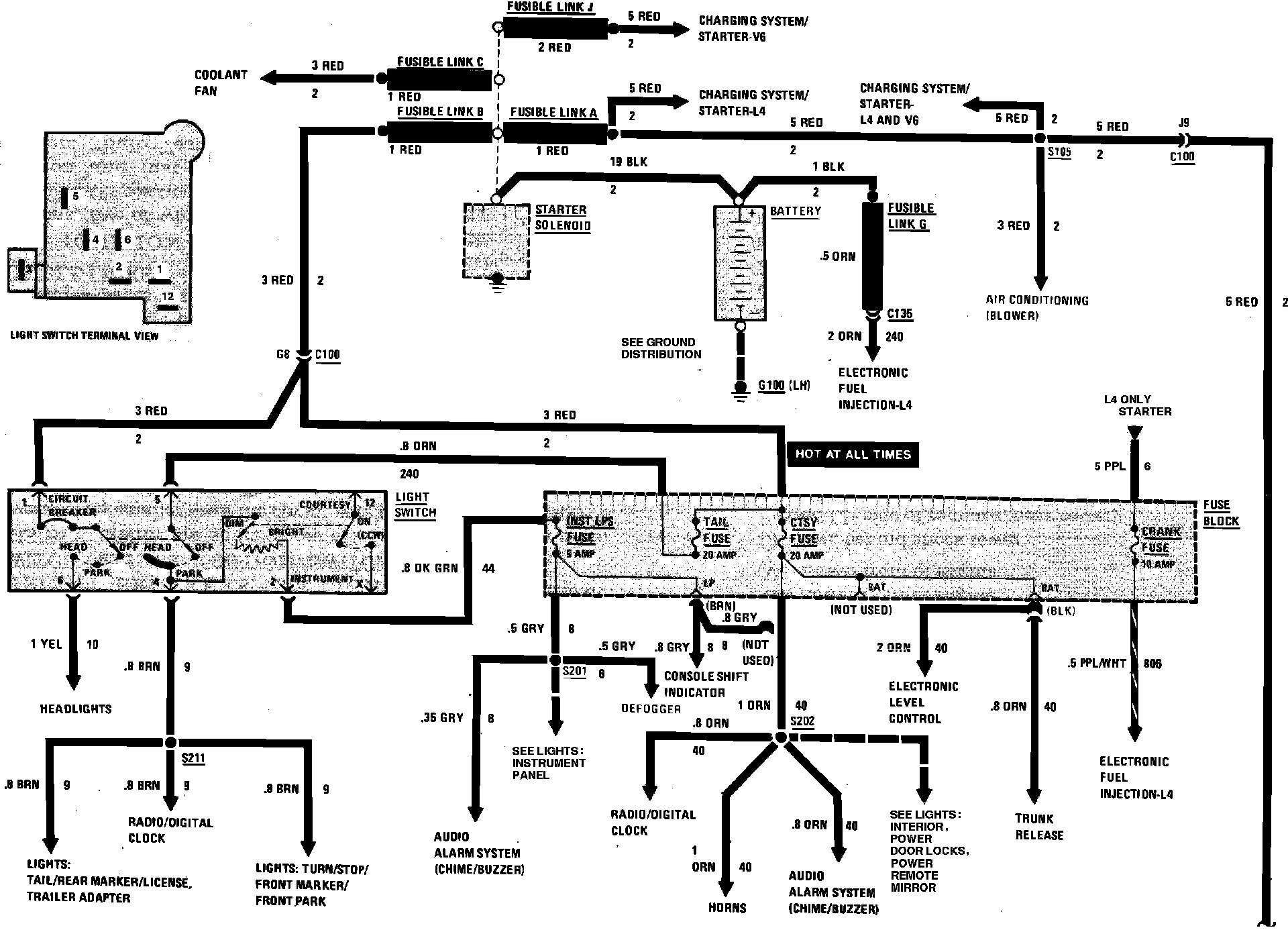

Power Distribution 6000 & 6000LE:
