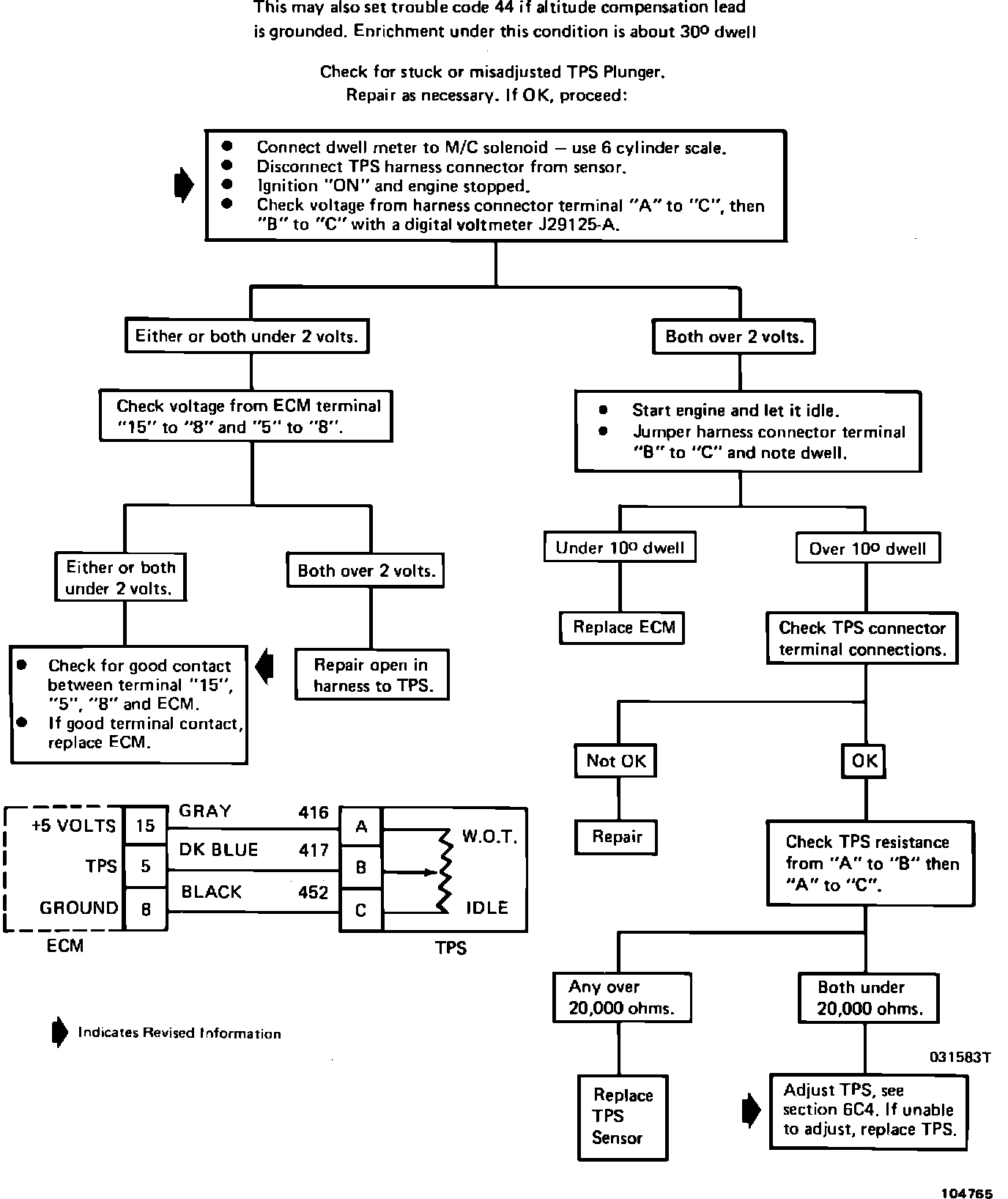

Chart "Code 21"

1983 CCC T CAR TROUBLE CODE 21THROTTLE POSITION SENSOR CIRCUIT (OPEN OR MISADJUSTED):
