Service Procedure

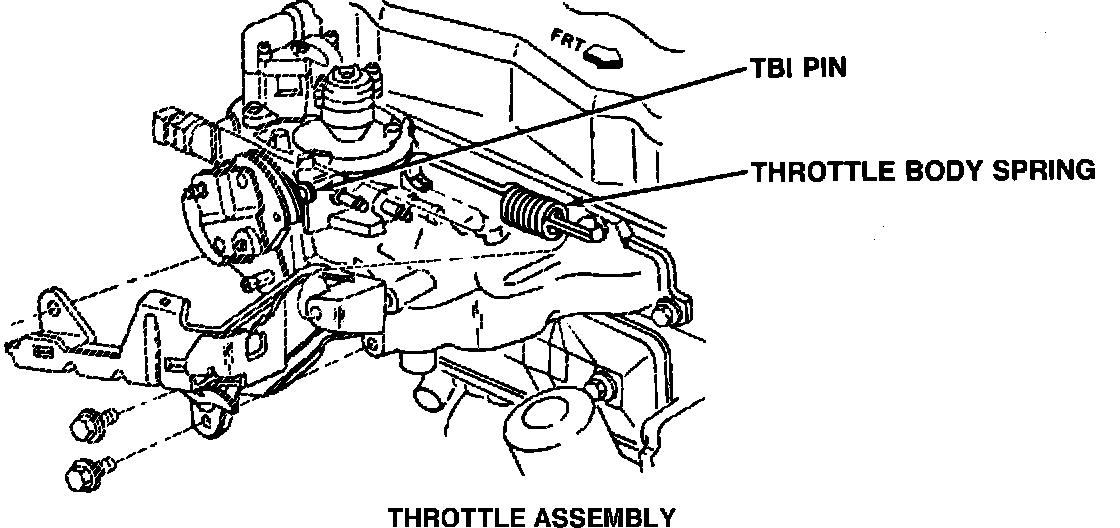

THROTTLE ASSEMBLY:

1. Open hood, install fender covers.

2. Remove air cleaner assembly.

3. Locate and remove existing throttle return spring (refer to illustration).

4. Install new throttle return spring, Part Number 14105794.

5. Reinstall air cleaner assembly.

6. Install Campaign Identification Label, remove fender cover and close hood.

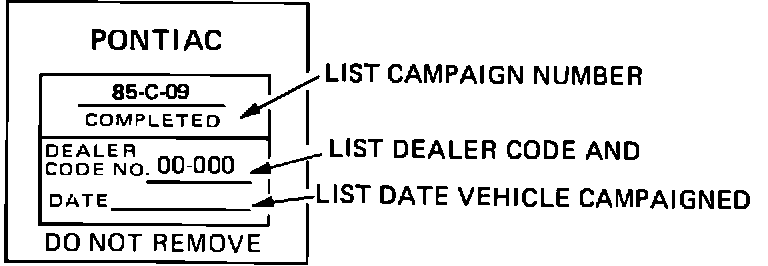

CAMPAIGN IDENTIFICATION LABEL:

CAMPAIGN IDENTIFICATION LABEL

Each vehicle modified in accordance with the instructions outlined in this Product Campaign Bulletin will require a "Campaign Identification Label". Each label provides a space to include the five digit dealer code of the dealer performing the campaign service. This information may be inserted with a typewriter or ballpoint pen.
Each "Campaign Identification Label" is to be located on the radiator core support in an area which will be visible when the vehicle is brought in for periodic servicing by the owner.

Apply "Campaign Identification Label" only on a clean dry surface.
