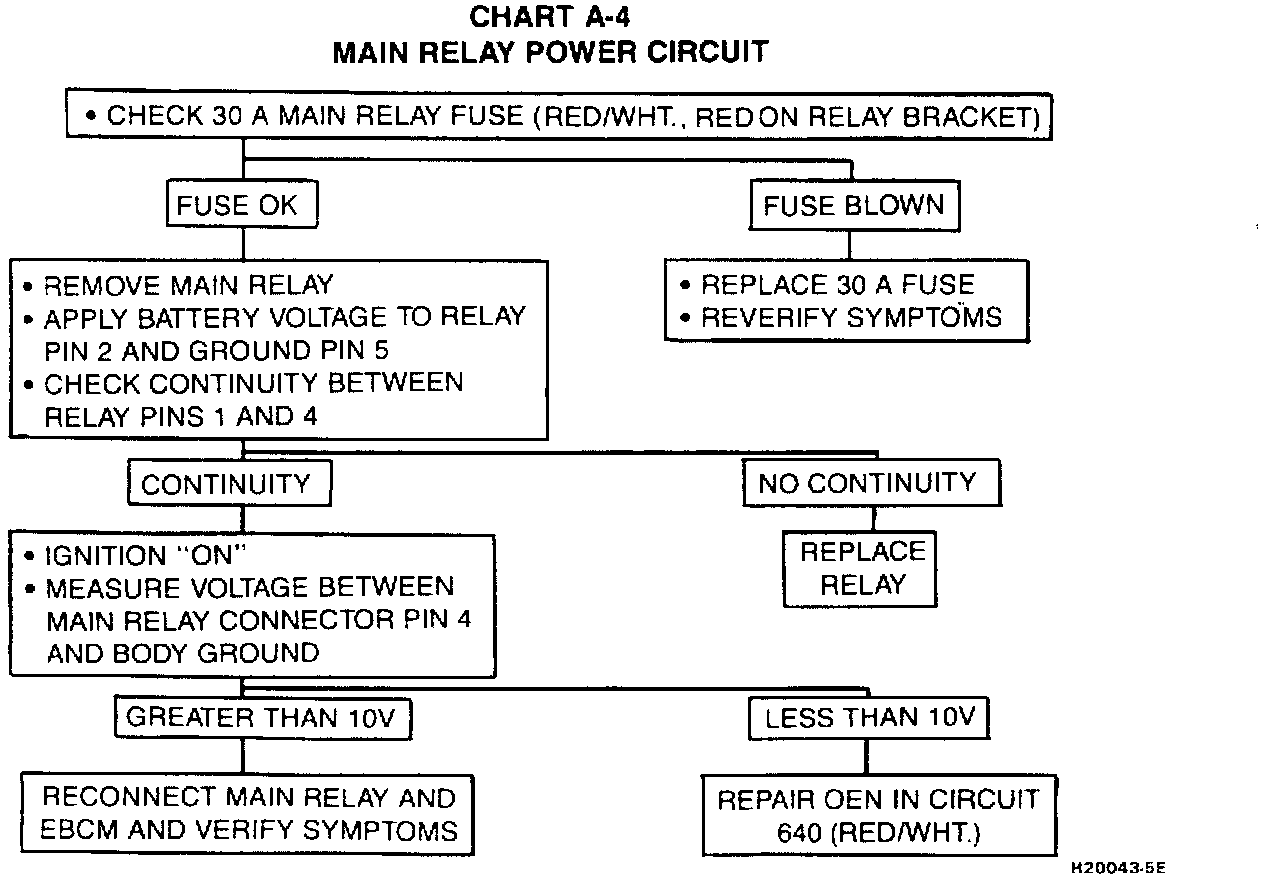

Home >> Pontiac >> 1987 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Charts >> A Charts >> Chart A-4 Main Relay Power Circuit
