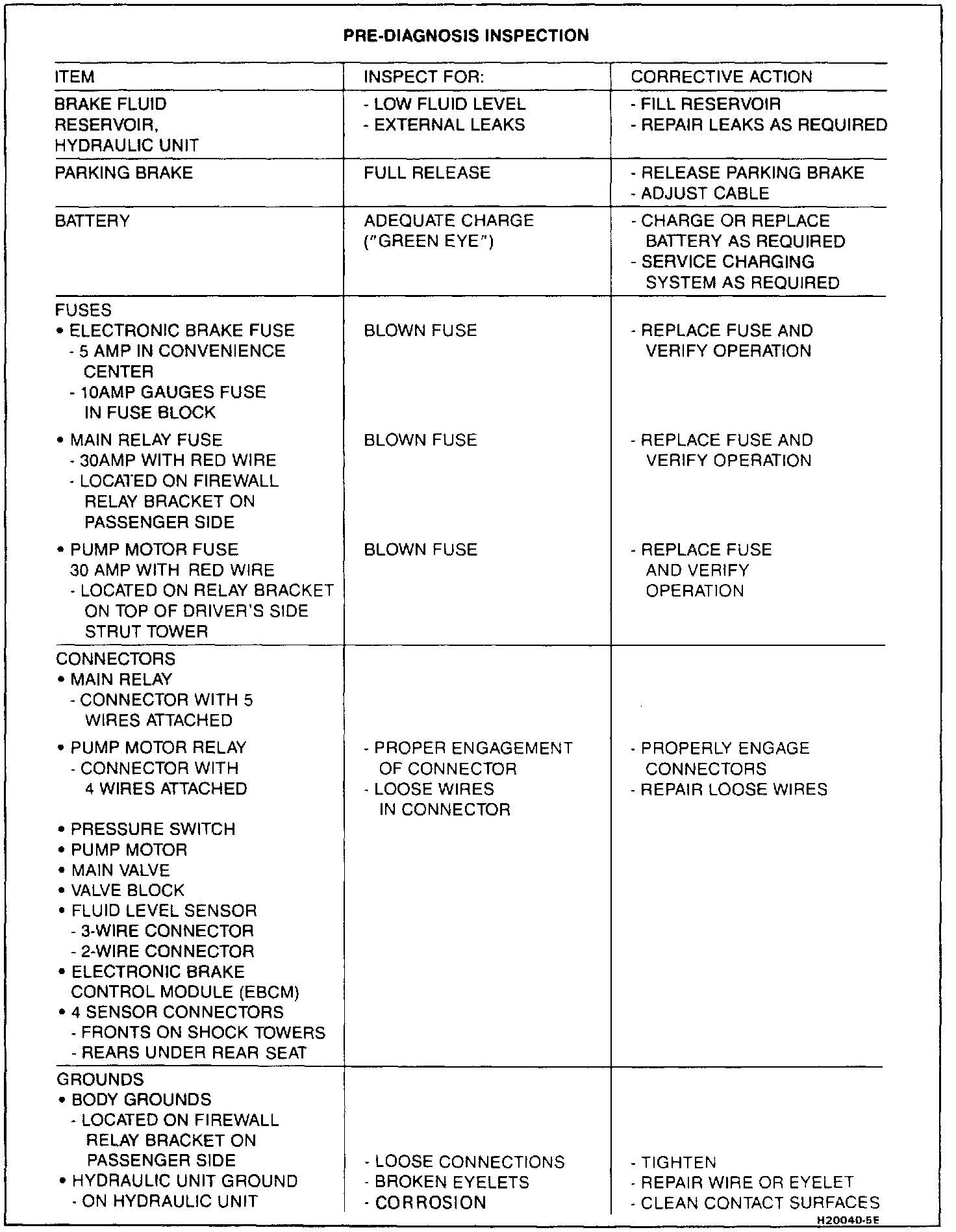

Pre-Diagnosis Inspection

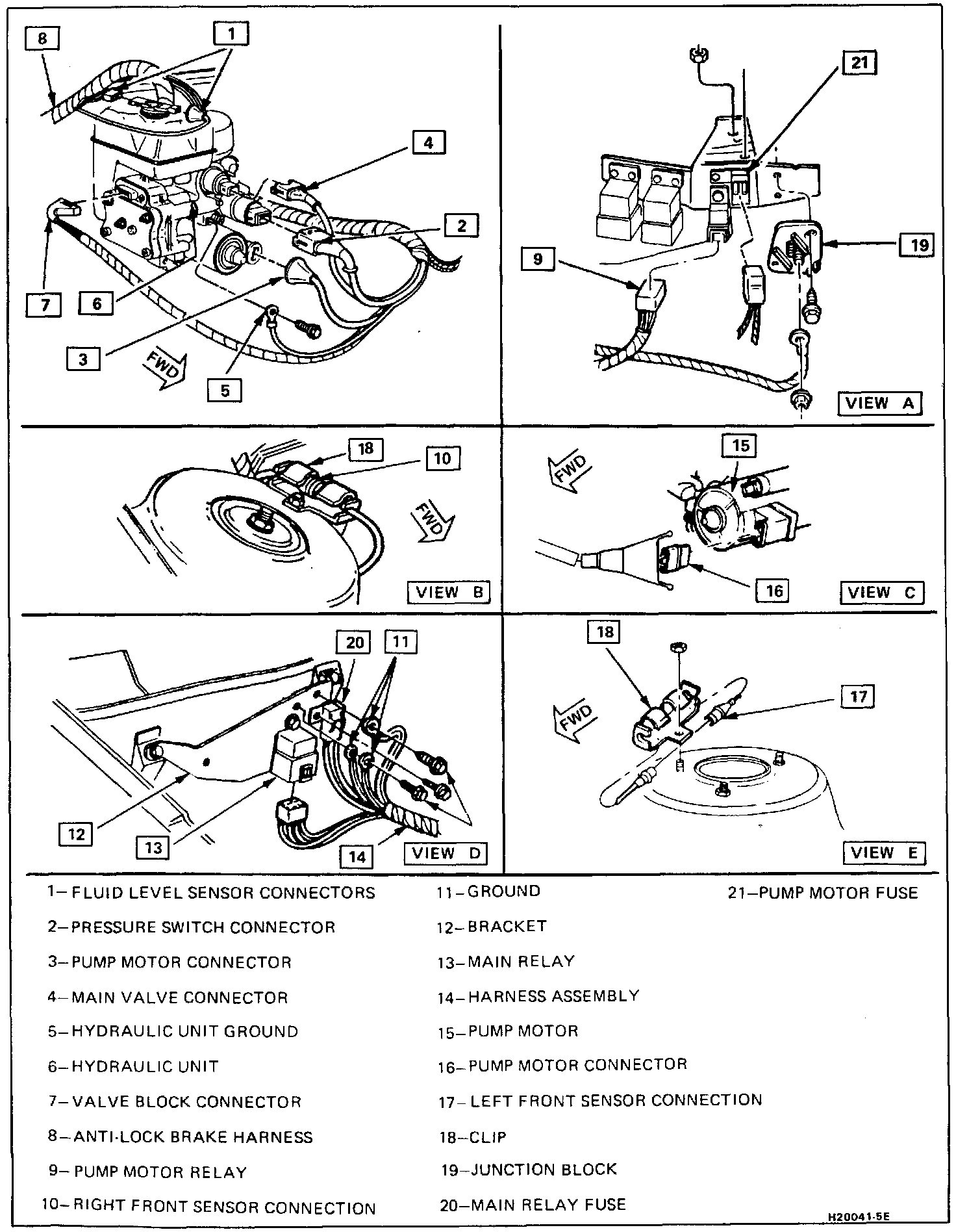

Connector Locations:

The Pre-Diagnosis Inspection consists of a quick visual check of specific system components which could create an apparent Antilock system malfunction. Performing this quick inspection of the system prior to diagnosing specific symptoms may result in isolation of a simple failure which may be the cause of an inoperative system. This inspection should be the first step in analyzing a customer complaint.
