Heater Core: Service and Repair

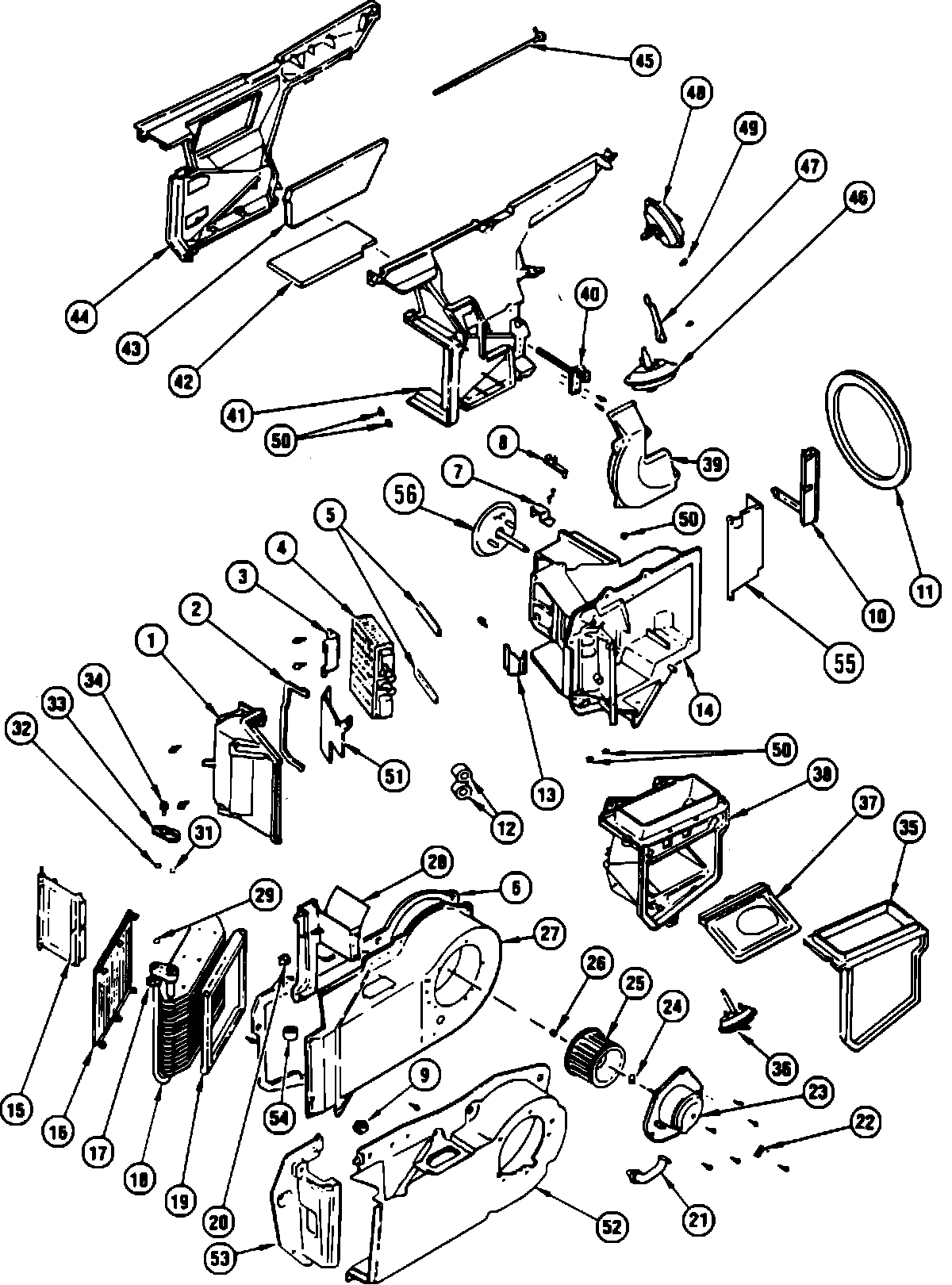

A/C Heater To Evaporator Exploded View:

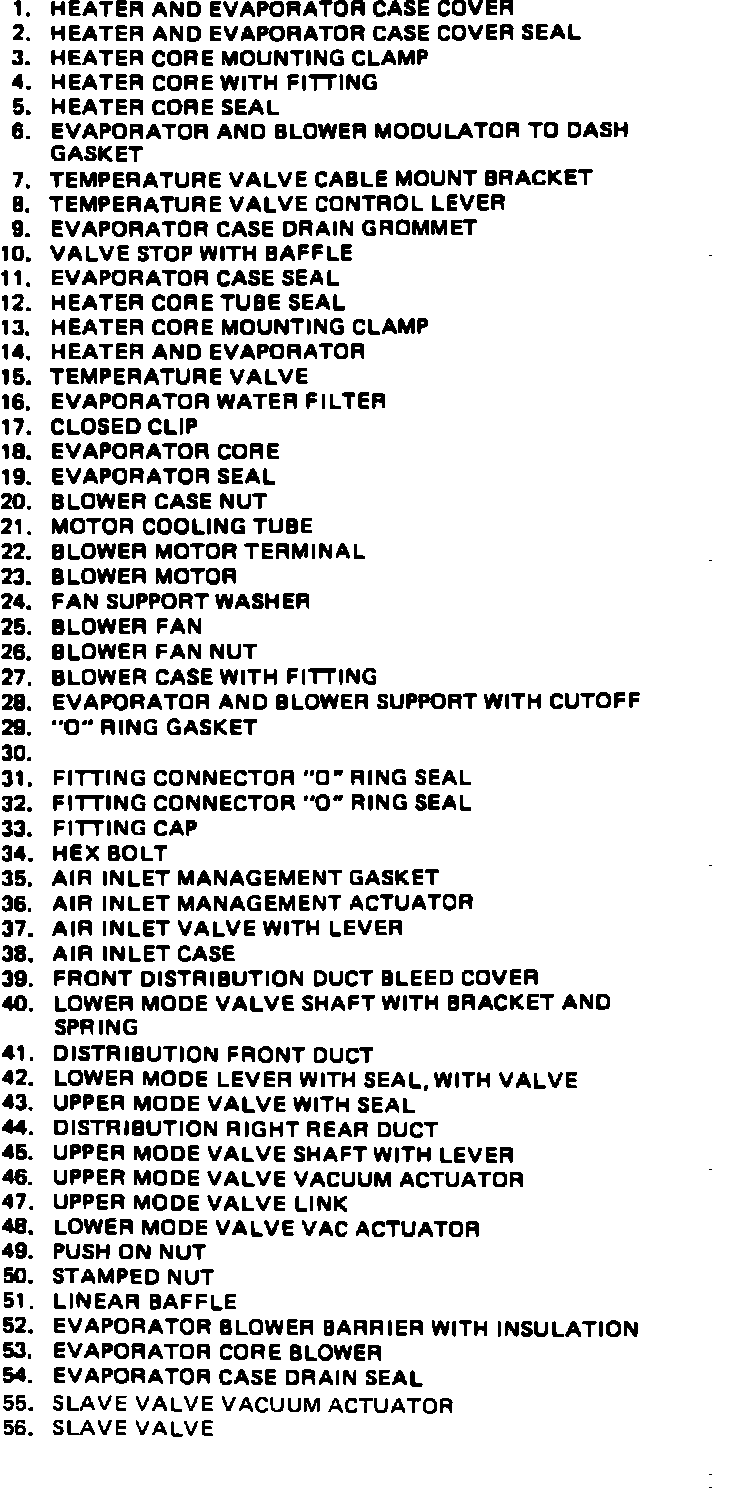

Figure Reference To Exploded View - Heater Core:

1. Remove negative battery cable.
2. Drain cooling system.
3. Remove right sound insulator.
4. Remove center instrument panel trim plate.
5. Remove lower instrument panel trim plate.
6. Remove right speaker grille and speaker to reach programmer attaching bolts.
7. Remove wires and hoses from programmer.
8. Remove programmer linkage cover and linkage.
9. Remove programmer.
10. Remove heater core cover.
11. Remove splash cover to access heater hoses.
12. Remove heater hoses.
13. Remove heater core.
14. Reverse procedure to install.
