Brakes - Selected Models with Revised Components
87pontiac14Bulletin Number: 88-5-3
Reference Number: 875001
Publish Date: 11/87
Subject: 1988 BRAKE SYSTEM CHANGES
Models
Affected: 1988 SUNBIRD AND GRAND AM
1988 Sunbird and Grand Am vehicles produced beginning with the following vehicle identification numbers (VIN) at the assembly plants listed will be equipped with a different brake master cylinder, brake booster assembly and brake caliper assemblies.
Assembly Plant Model VIN Breakpoint
Lansing (C) Grand Am 1G2NV14U9JC637905
Lordstown (7) Sunbird 1G2JB51K4J7506603
The changes to the brake system were incorporated to provide an improved pedal feel and increased booster assist on initial brake apply.
PARTS USAGE
The new caliper part numbers listed below must be used to service ALL 1988 Sunbird and Grand Am models.
The NEW brake booster and master cylinder part numbers listed in this bulletin MUST be used to service only those Sunbird and Grand Am models produced beginning with the VIN breakpoints provided.
NOTICE: Vehicles built prior to the VIN breakpoints MUST be serviced with the old brake booster and brake master cylinder part numbers listed in this bulletin. Mixing the new booster and master cylinder parts with old parts on early built (prior to VIN breakpoints) vehicles may result in a brake application requiring increased pedal travel to stop the car.
PARTS INFORMATION:
1988 NEW 1988 OLD
PART NUMBER PART NUMBER
Caliper 18015752 (Left) 18011667 (Left)
18015753 (Right) 18011668 (Right)
Booster 18015498 (Code NT) 18013875 (Code LF)
Master Cylinder 18015760 (Code NT) 18014370 (Code DL)
PARTS IDENTIFICATION:

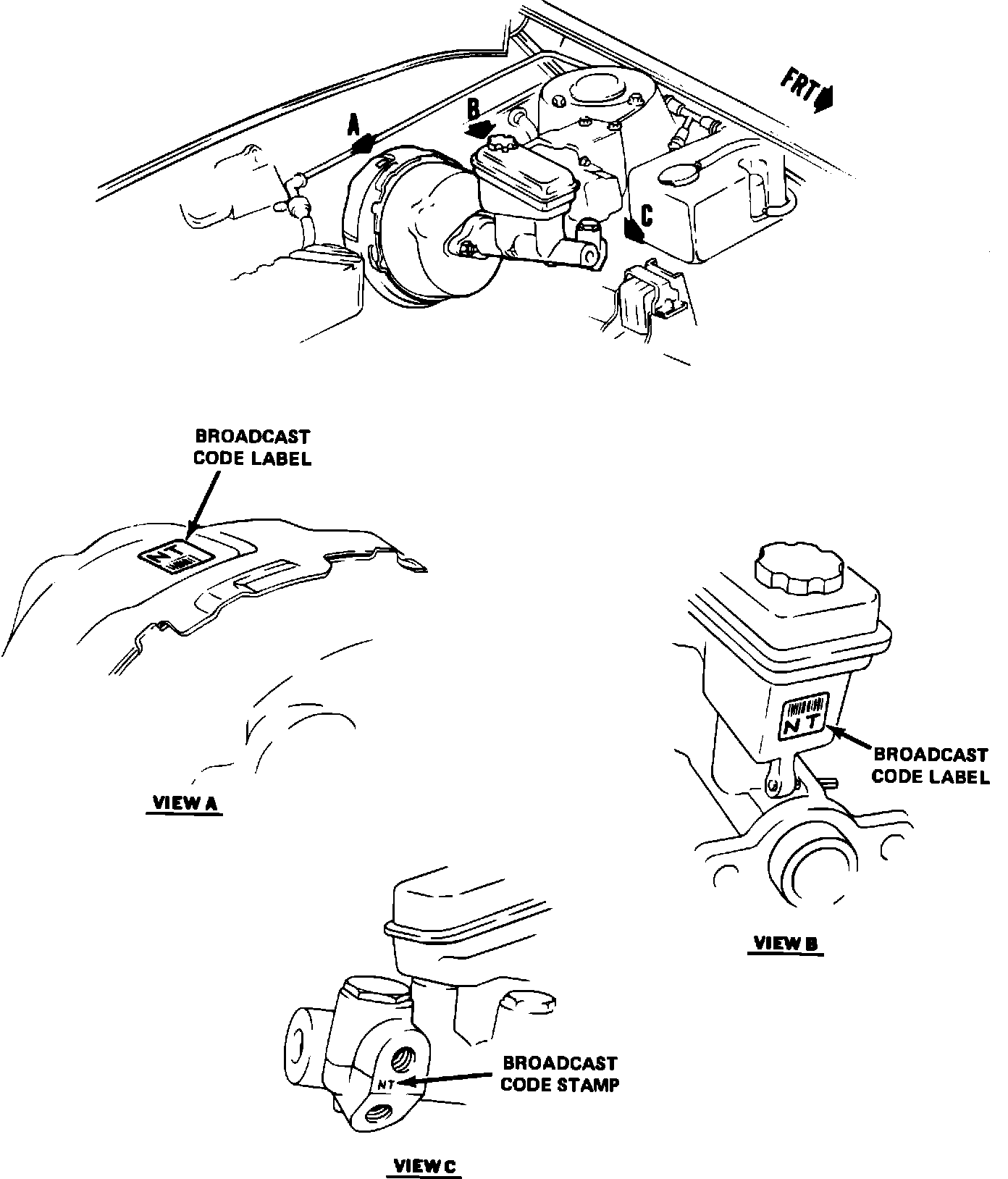

The new brake booster part number listed in this bulletin can be identified by the broadcast code "NT" printed on the bar code label which is attached to the part. See illustration, View A.
The new master cylinder part number listed in this bulletin can be identified by a broadcast code of "NT" stamped on the aluminum housing. See View C. The broadcast code of "NT" is also printed on the bar code label attached to the rear of the brake fluid reservoir, View B. The brake booster, master cylinder, and brake fluid reservoir MUST all have a broadcast code of "NT" on all vehicles built after the VIN breakpoints listed in this bulletin.
WARRANTY INFORMATION:
When submitting a warranty claim, use existing labor operation and times.
