Ignition Coil: Testing and Inspection

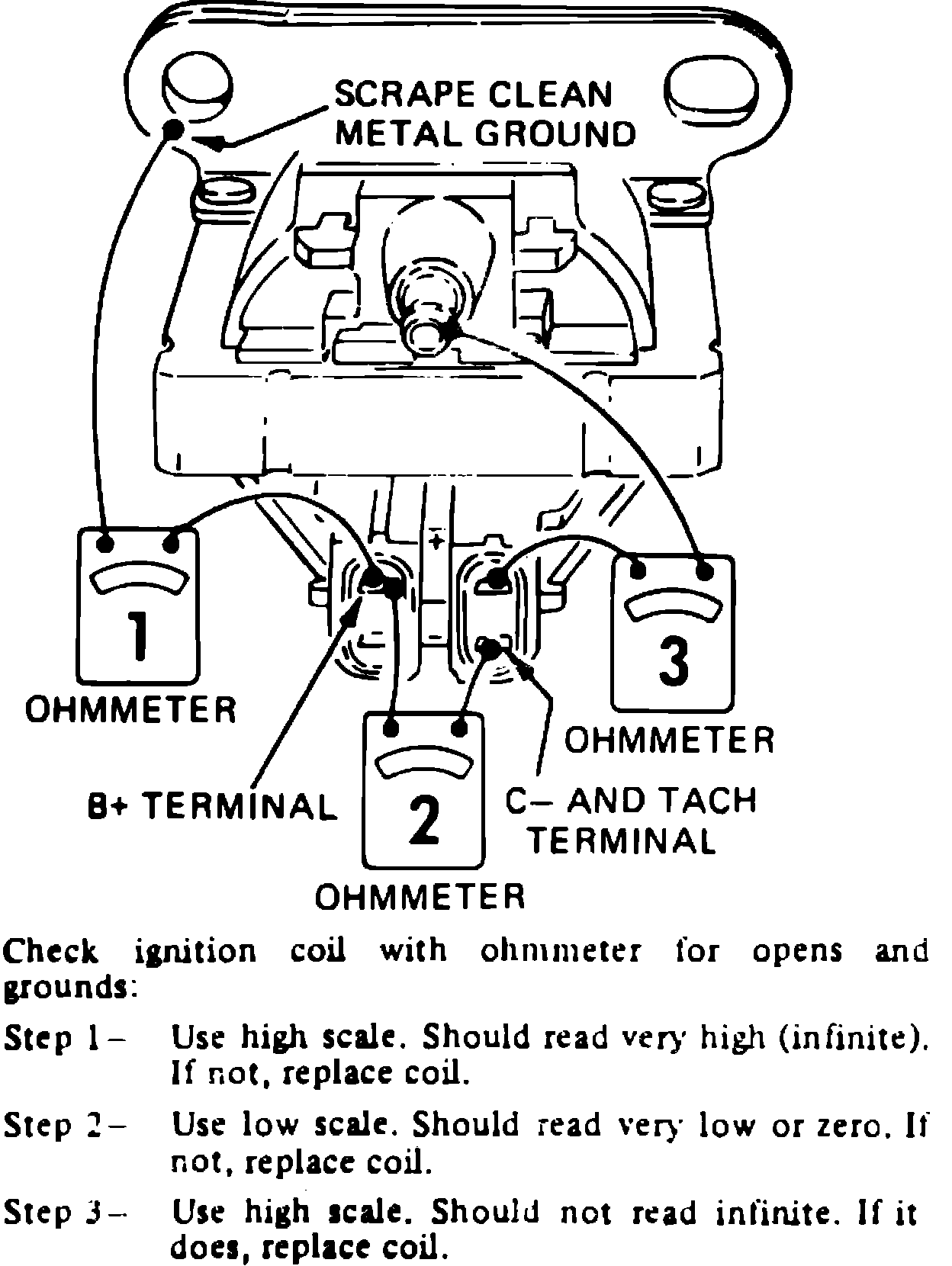

Fig. 1 Testing ignition coil:

IGNITION COIL
Refer to Fig. 1 to test ignition coil.

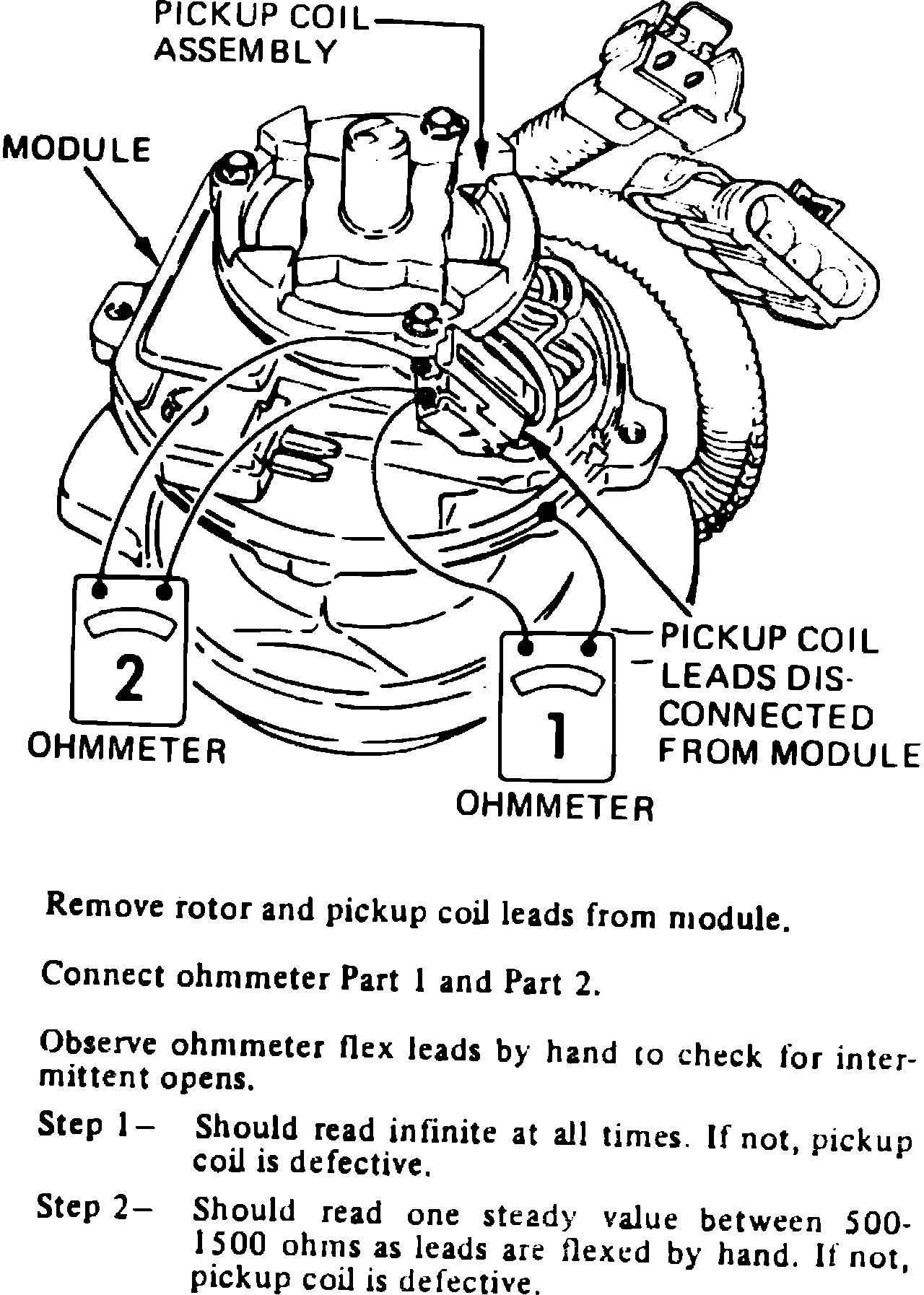

Fig. 2 Testing pickup coil:

PICKUP COIL
Refer to Fig. 2 to test pickup coil.
