Without Air Conditioning

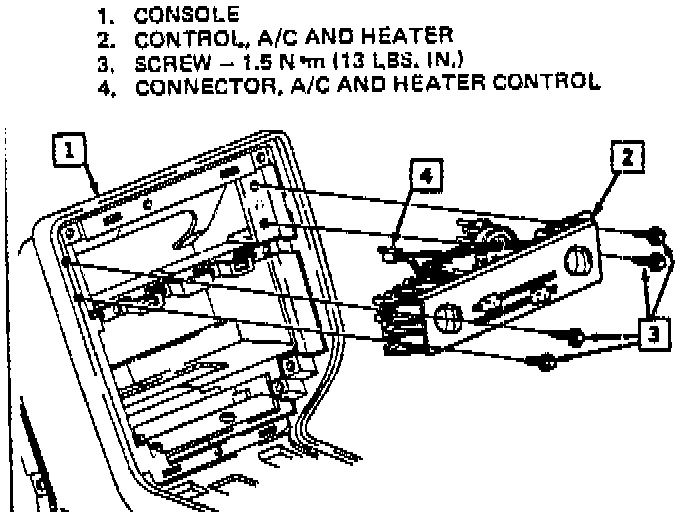

Heater Control Assembly:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Radio trim plate.
3. Right sound insulator panel.
4. Console extension.
5. Control assembly retaining screws and pull control assembly away from the instrument panel.
6. Electrical and vacuum connections.

INSTALL OR CONNECT
1. Electrical and vacuum connections.
2. Control assembly and retaining screws to instrument panel.
3. Console extension.
4. Right sound insulator panel.
5. Radio trim plate.
6. Negative battery cable.
