Catalytic Converter: Service and Repair

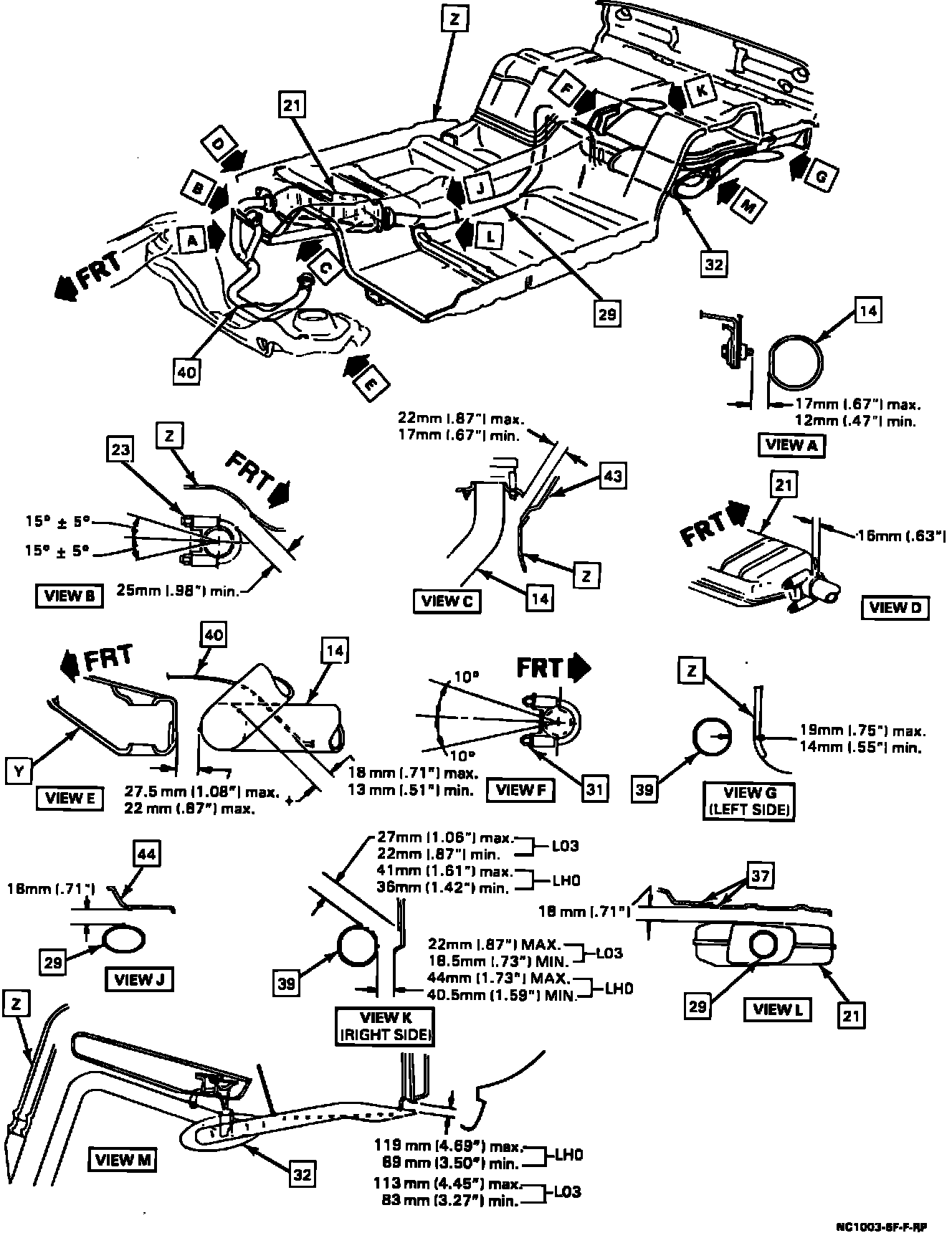

Exhaust Configuration:

REMOVAL:
1. Using suitable jack, raise and support vehicle.
2. Remove converter to intermediate pipe bolts at intermediate pipe.
3. Remove intermediate pipe.
4. Remove converter clamp at crossover pipe.
5. Remove hanger and hanger bolts.
6. Remove catalytic converter.


INSTALLATION:
1. Install catalytic converter.
2. Install and tighten hanger bolts.
Torque Value 52 N-m (38 lb.ft.)
3. Install and tighten converter clamp at crossover pipe.
Torque Value 60 N-m (44 lb.ft.)
4. Install intermediate pipe.
5. Tighten converter to intermediate pipe bolts at intermediate pipe.
Torque Value 20 N-m (15 lb.ft.)
