Blower Motor

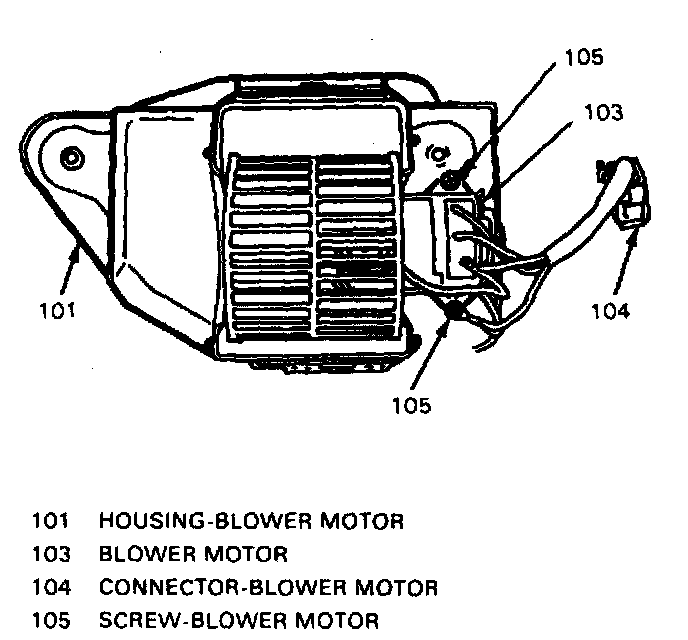

Blower Motor Housing:

Blower Motor Fan:

Remove or Disconnect

1. Negative battery cable.
2. Wiper arms.
3. Four wind deflector screws and deflector halves.
4. Washer nozzle hoses from nozzles.
5. Dash panel seal from dash panel and clip.
6. Hex nut from right-hand wiper bearing.
7. Water deflector.
8. Blower motor electrical connector (104) and two screws (102) from blower motor housing (101).
9. Housing (101) and motor (103).
10. Screws (105) and motor (103).

Install or Connect

1. Motor (103) and screws (105).
2. Housing cover.
3. Blower motor electrical connector (104) and two screws (102) to blower motor housing.
4. Water deflector.
5. Right-hand wiper bearing.
6. Dash panel seal and clip.
7. Washer nozzle hoses to nozzles.
8. Wind deflectors and deflector screws.
9. Wiper arms.
10. Negative battery cable.
