Test D - Inflator Timer Relay Test
Test D - Inflator Timer Relay Test

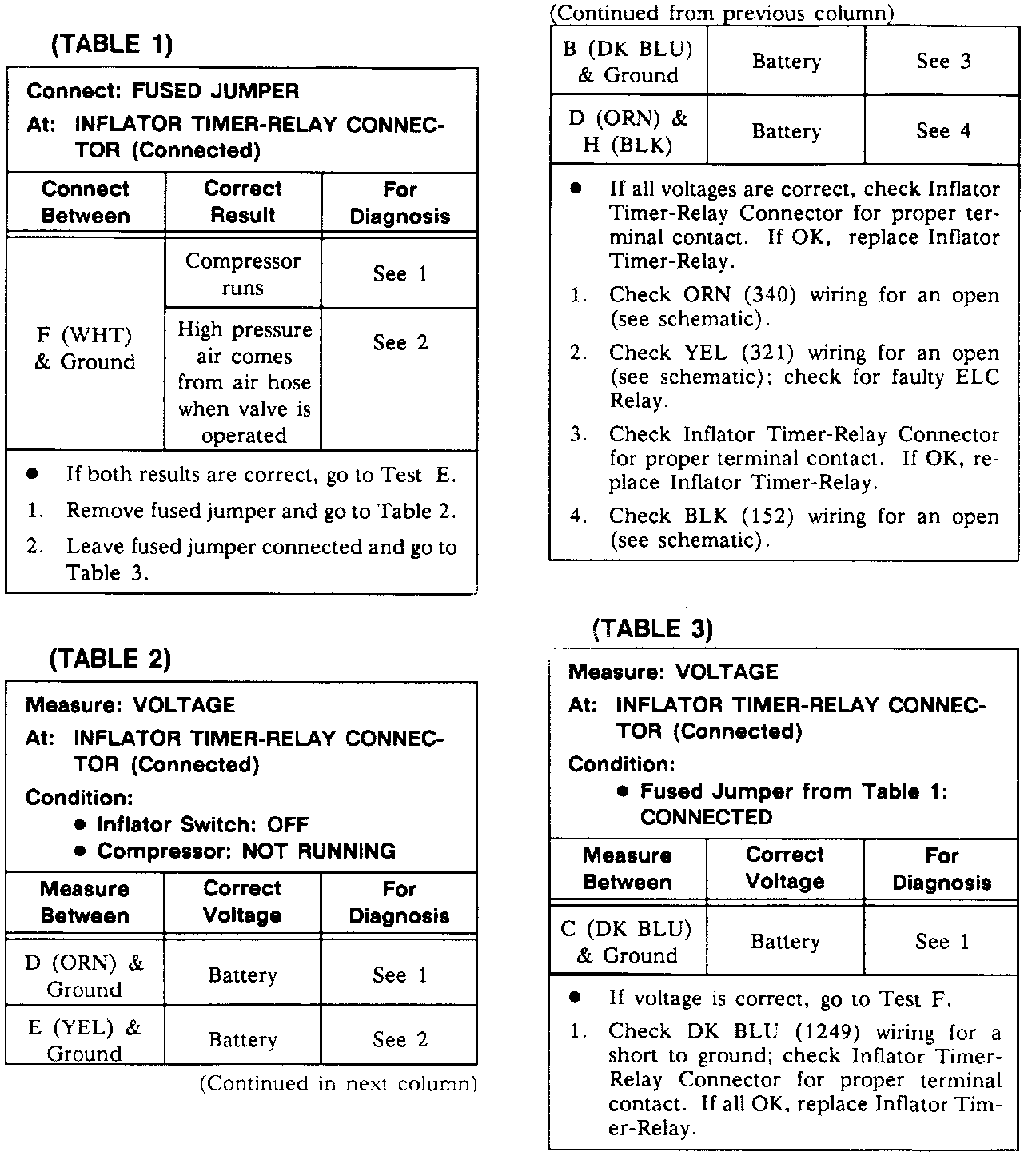

Test D. Electronic Level Control: Inflator Timer-Relay Test Tables 1, 2 & 3.:
