Home >> Pontiac >> 1993 >> Firebird V6-204 3.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Driver 6-Way (AC3)

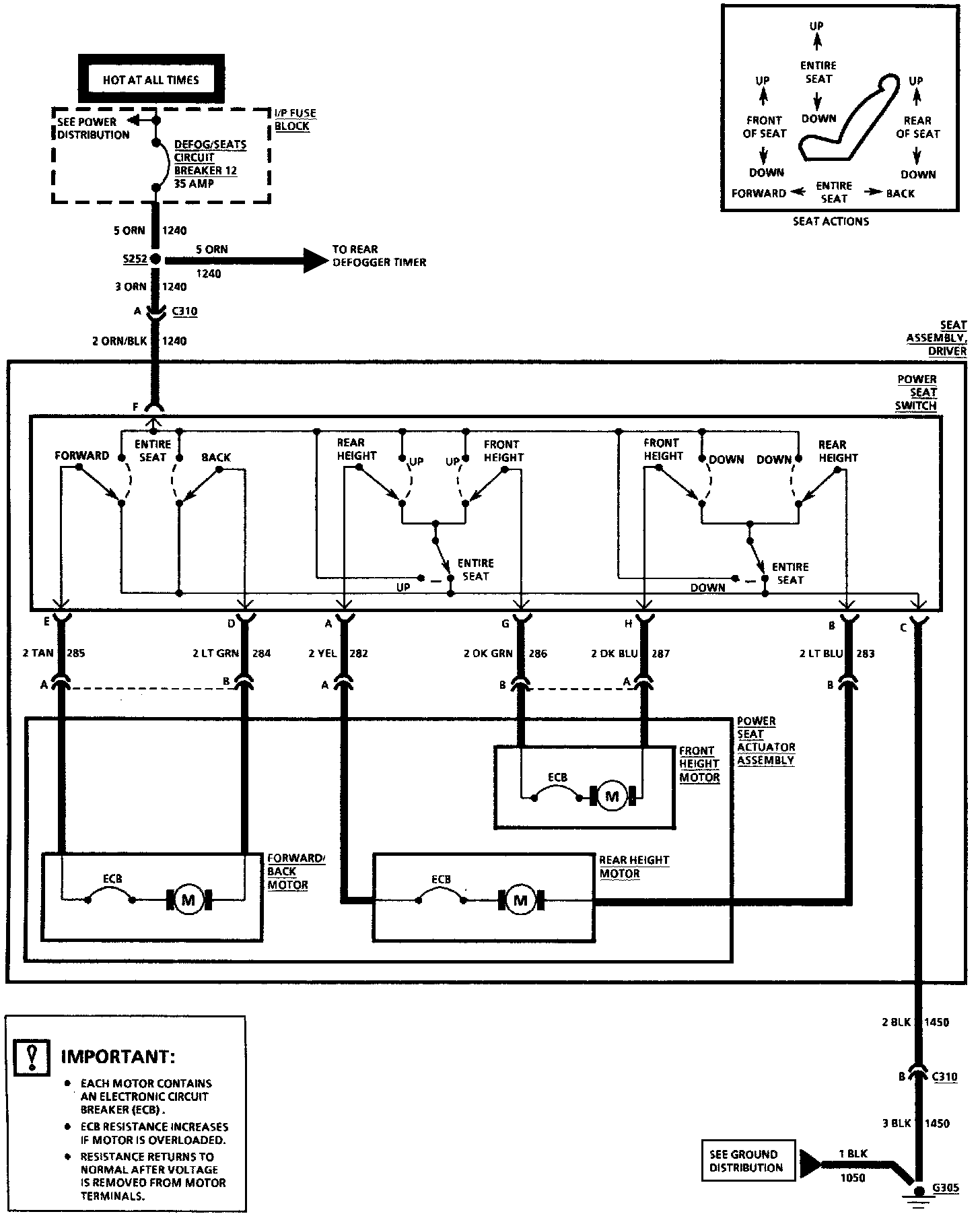

Driver 6-Way (AC3)

Power Seat: Driver 6-Way (AC3):
