Preliminary Inspection

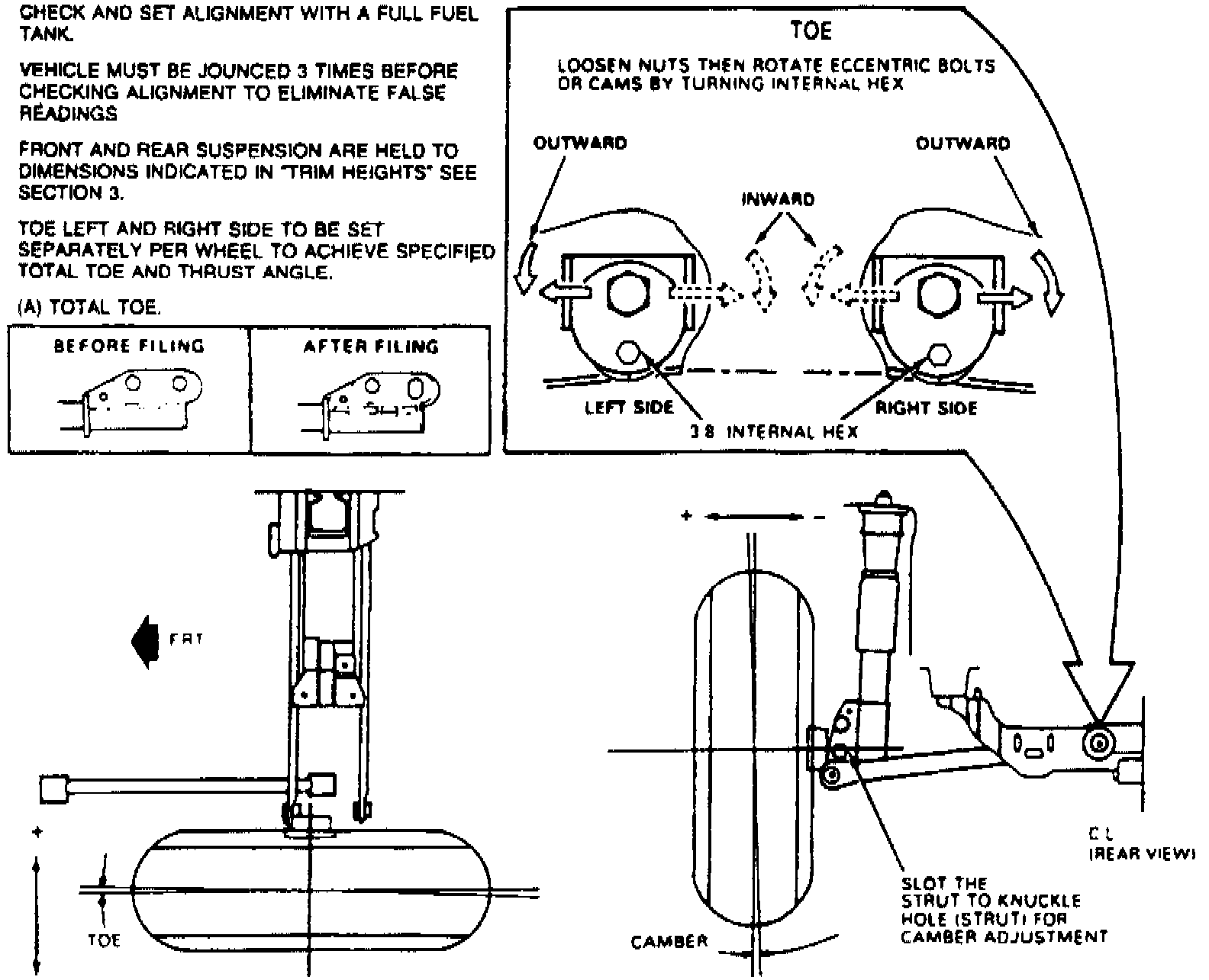

Fig. 1 Rear Alignment Inspection & Adjustment.:






Refer to Fig. 1 when adjusting rear wheel alignment.
