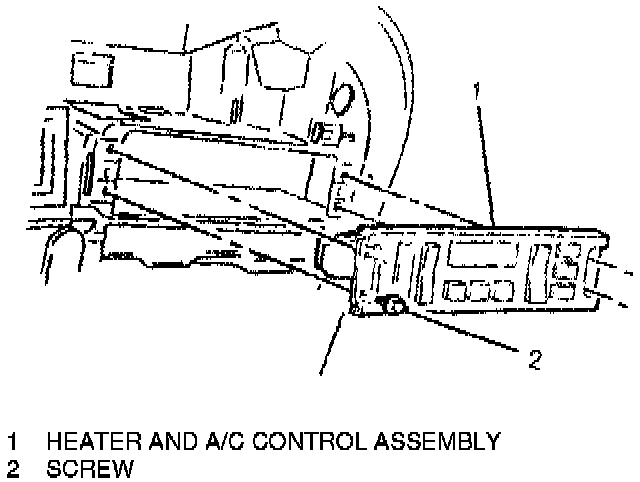

Control Assembly, HVAC

Heater And A/C Control:

REMOVE OR DISCONNECT
1. Instrument Panel (I/P) trim plate, (snap out).
2. Heater and A/C control screws.
- Pull assembly rearward.
3. Electrical connector.
4. Heater and A/C control.

INSTALL OR CONNECT
1. Electrical connector.
2. Heater and A/C control to I/P.
3. Heater and A/C control screws.
- Tighten screws to 1.9 Nm (17 lb. in.).
4. I/P trim plate,
