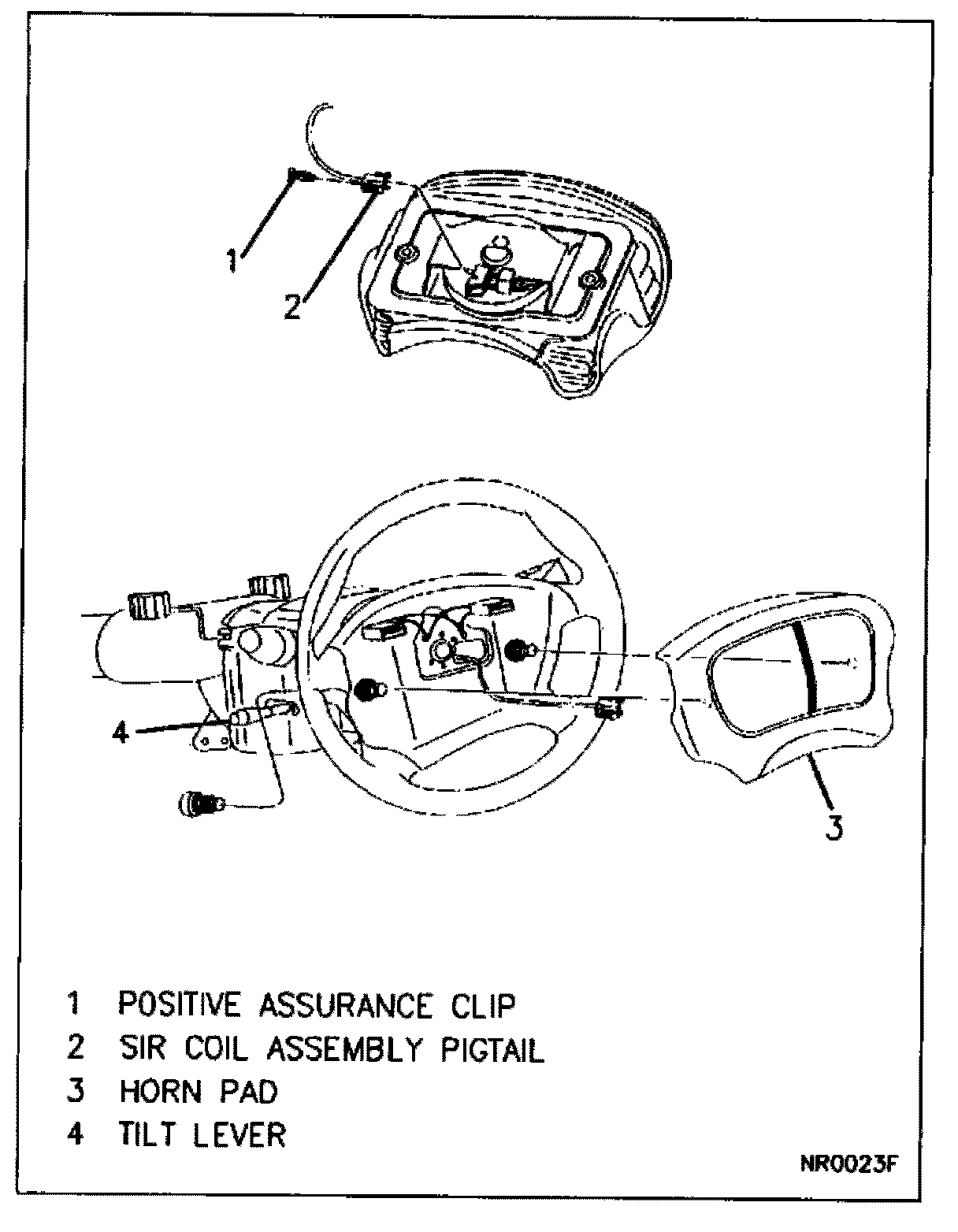

Driver's Inflator Module

INFLATOR MODULE - SUPPLEMENTAL INFLATABLE RESTRAINT (SIR)

Remove or Disconnect

^ Disable the (SIR) system.

1. Two screws from the back of the steering wheel using a Hex Head driver (or equivalent).
2. Connector position assurance (CPA) and electrical connection from rear of inflator module.
3. Inflator module.

Install or Connect

1. Electrical and connector position assurance (CPA) to rear of inflator module.
2. Inflator module to steering wheel and four screws through back of steering wheel.

Tighten
^ Screws to 10 N.m (89 lbs. in.).

^ Enable the SIR system.
