Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
C2
>>
Pinout Description
Pinout Description
Underhood (U/H) Electrical Center: C2 (Part 1 Of 3):

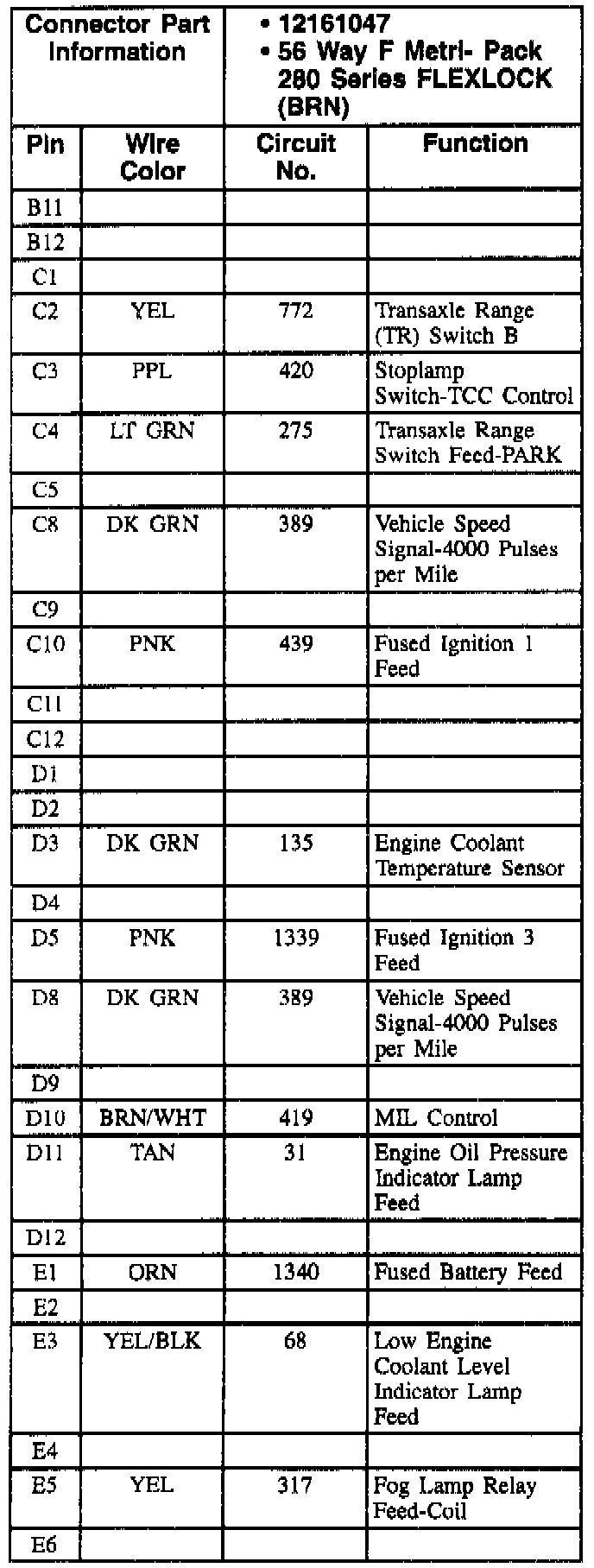

Underhood (U/H) Electrical Center: C2 (Part 2 Of 3):

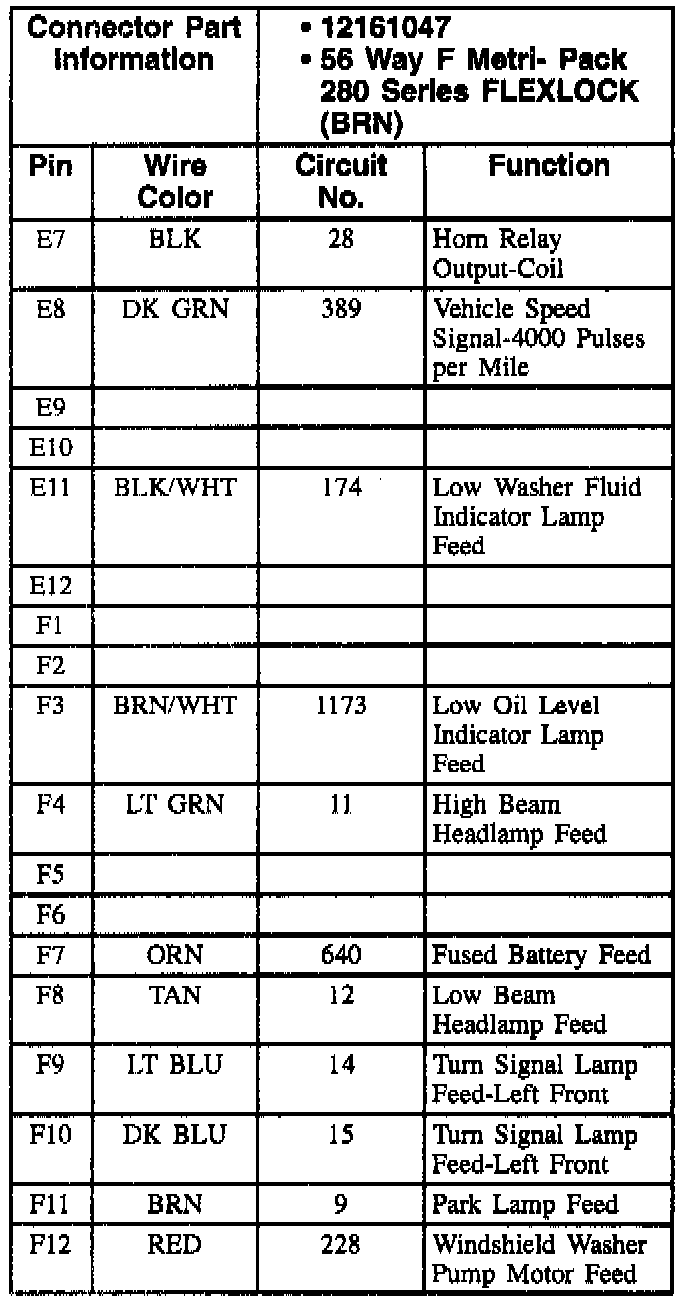

Underhood (U/H) Electrical Center: C2 (Part 3 Of 3):
