Data Link Connector: Service and Repair

Description:

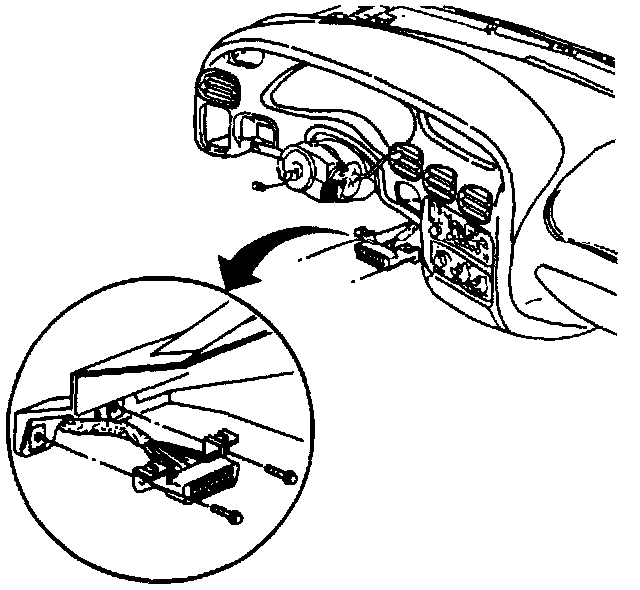

The data link connector is under the instrument panel. to the right of the steering column. It is part of the instrument panel wiring harness.

Remove or Disconnect
1. Bolts/screws holding data link connector.
2. Lower data link connector.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Data link connector into position.
2. Bolts/screws.

Tighten
^ Bolts/screws to 2 N.m (18 lb.in.).
