Modular Fuel Sender Assembly - Replacement Revised

61-63-11

SMU - SECTION 6C - ENGINE FUEL.

Issued: 07/19/96

SUBJECT:
SERVICE MANUAL UPDATE SECTION 6C-ENGINE FUEL REVISED MODULAR FUEL SENDER ASSEMBLY REPLACEMENT

MODELS:
1997 PONTIAC GRAND PRIX
WITH 3.L AND 3.8L ENGINES (VINS M, K, 1-RPOS L82, L36, L67)

THIS BULLETIN IS BEING ISSUED TO REPLACE THE MODULAR FUEL SENDER ASSEMBLY REPLACEMENT PROCEDURE WITH THE ATTACHED REPLACEMENT. THIS PROCEDURE IS FOUND IN SECTION 6C-10 OF THE APPROPRIATE SERVICE MANUAL.

THE PROCEDURE HAS BEEN UPDATED TO INCLUDE THE FUEL SENDER COVER LOCATED IN THE TRUNK.

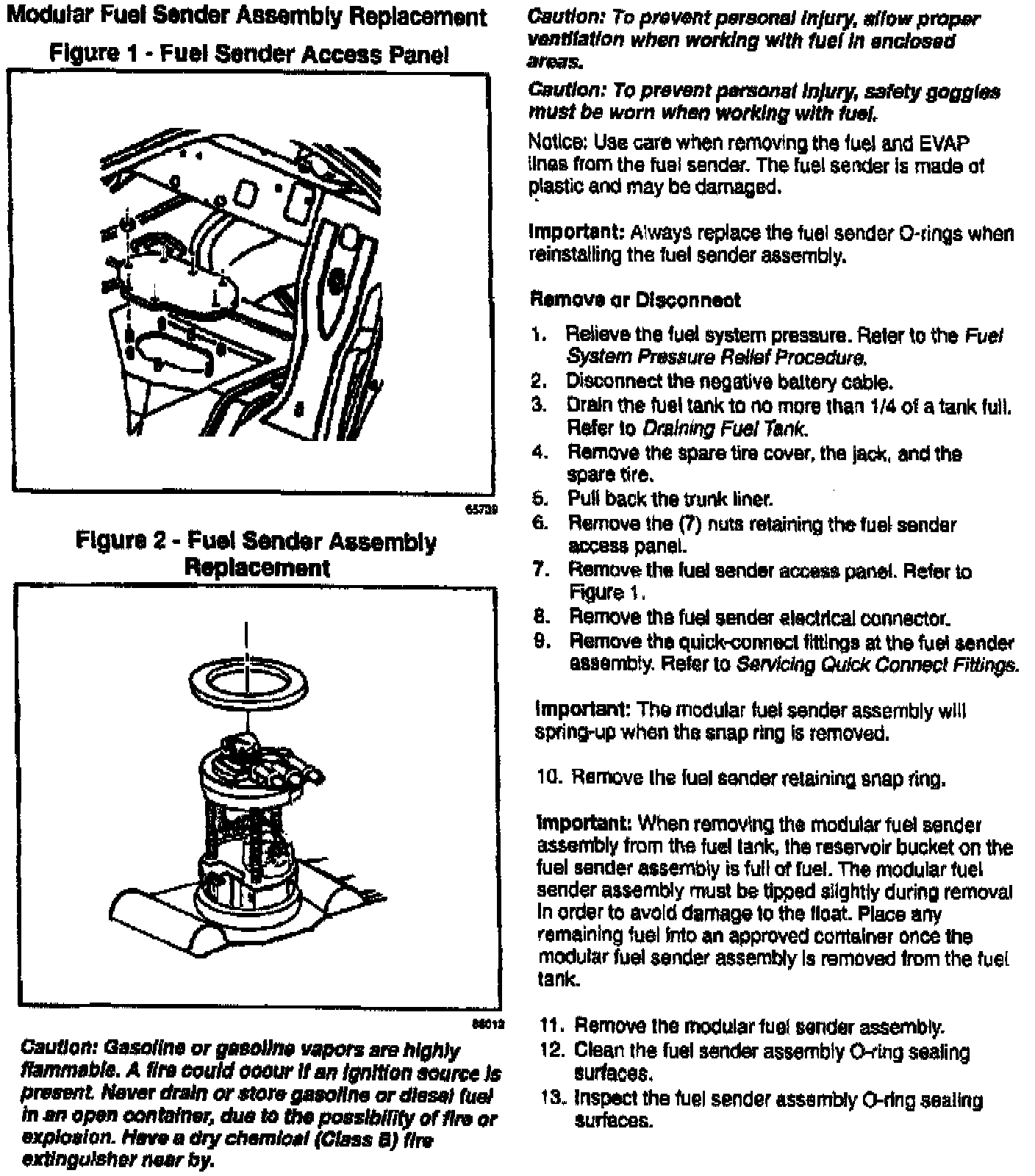

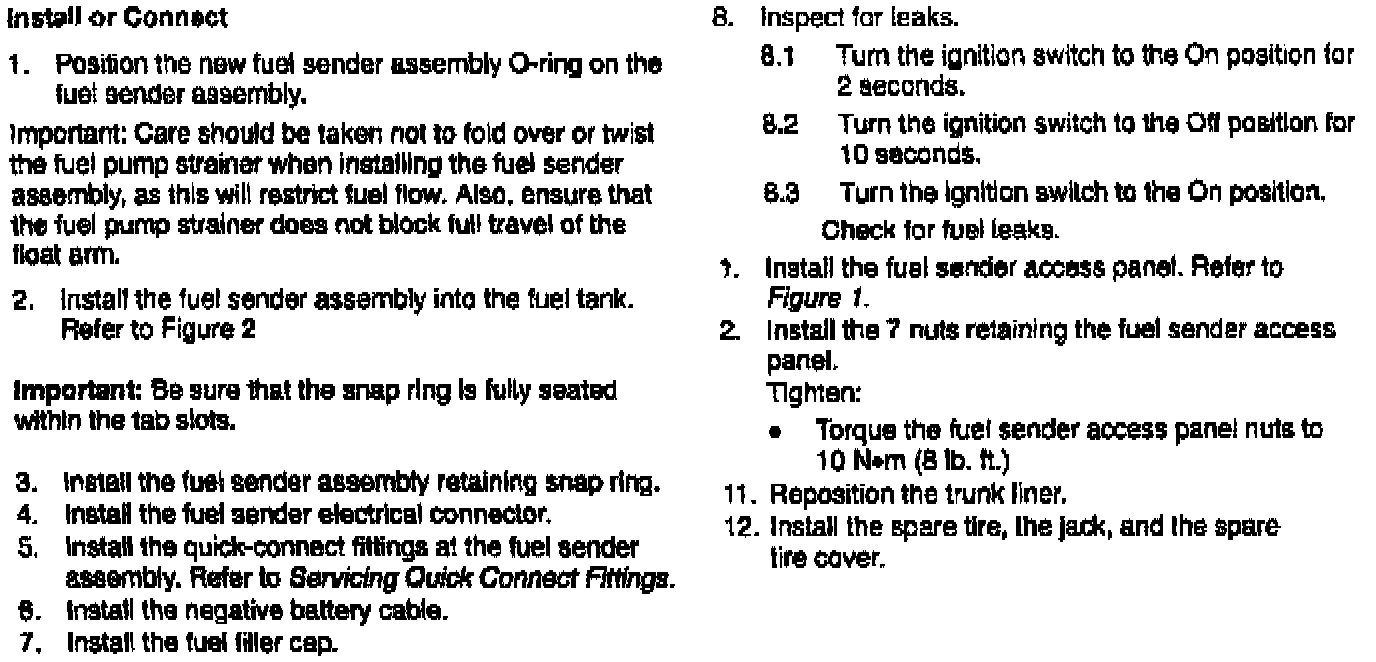

Modular Fuel Sender Assembly Replacement
