Sunroof / Moonroof Module: Service and Repair

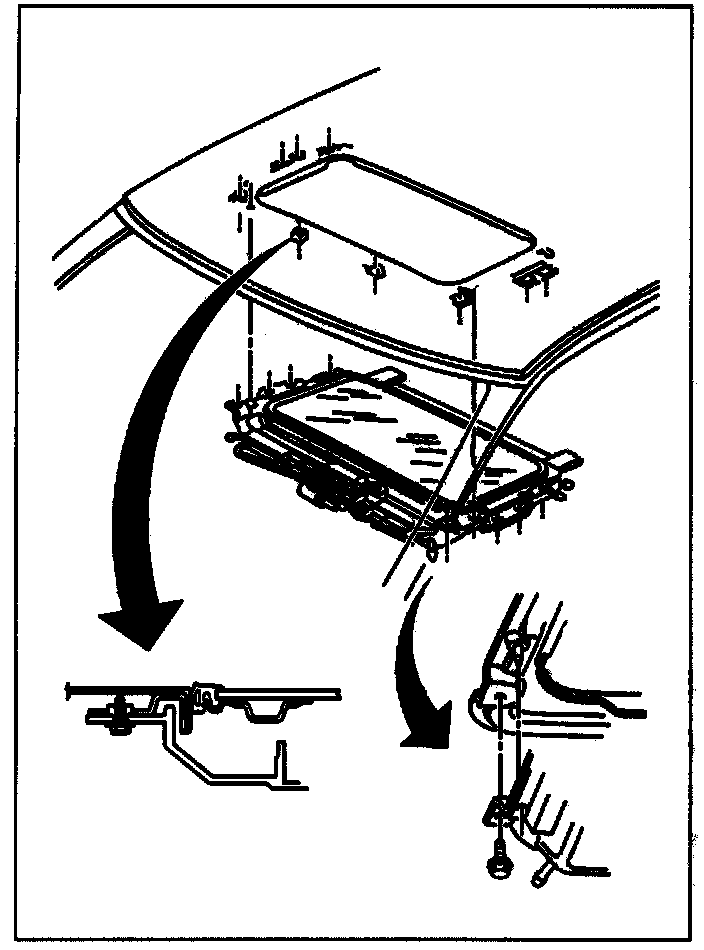

Sunroof Module

Remove

1. Position sunroof in the closed position.
2. Headliner.
3. Electrical connector from actuator and express module.
4. Rear drain hose connections from the sunroof housing.
5. Front drain hose connections from the sunroof housing.
6. Sunroof module bolts.
7. Sunroof module from vehicle through door opening.

Install

1. Sunroof module from vehicle through door opening.
2. Sunroof module bolts.

Tighten
Tighten bolts to 10 N.m (89 lb. in.).

3. Front drain hose connections from the sunroof housing.
4. Rear drain hose connections from the sunroof housing.
5. Electrical connector from actuator and express module.
6. Headliner.
7. Check operation of sunroof.
