Home >> Pontiac >> 1997 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Component Locations >> 4T60-E Automatic Transaxle >> Transmission Internal Components

Transmission Internal Components

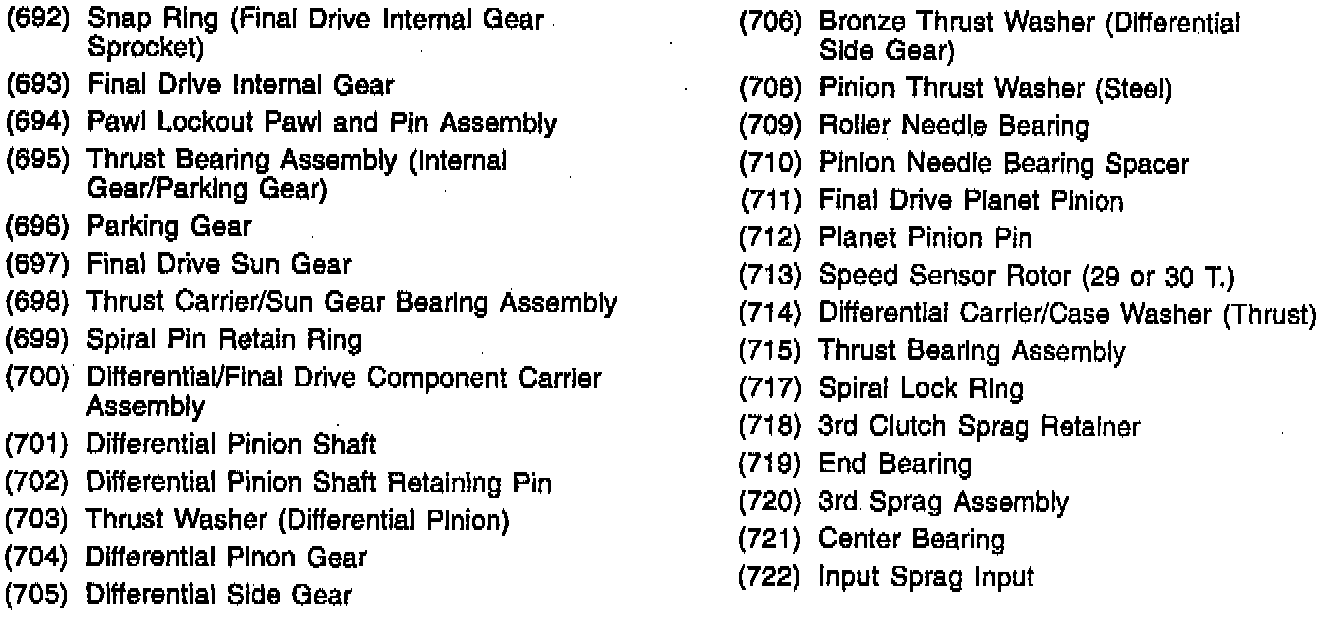

Part 1 Of 2:

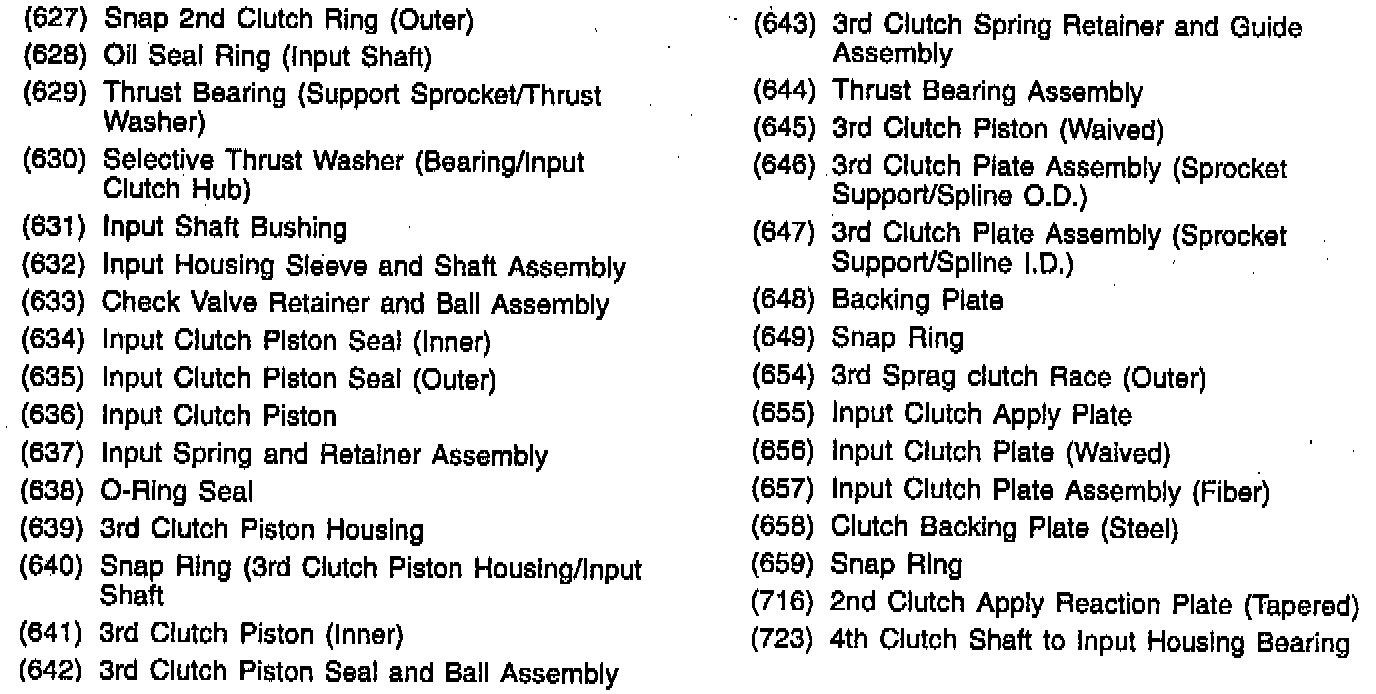

Part 2 Of 2:

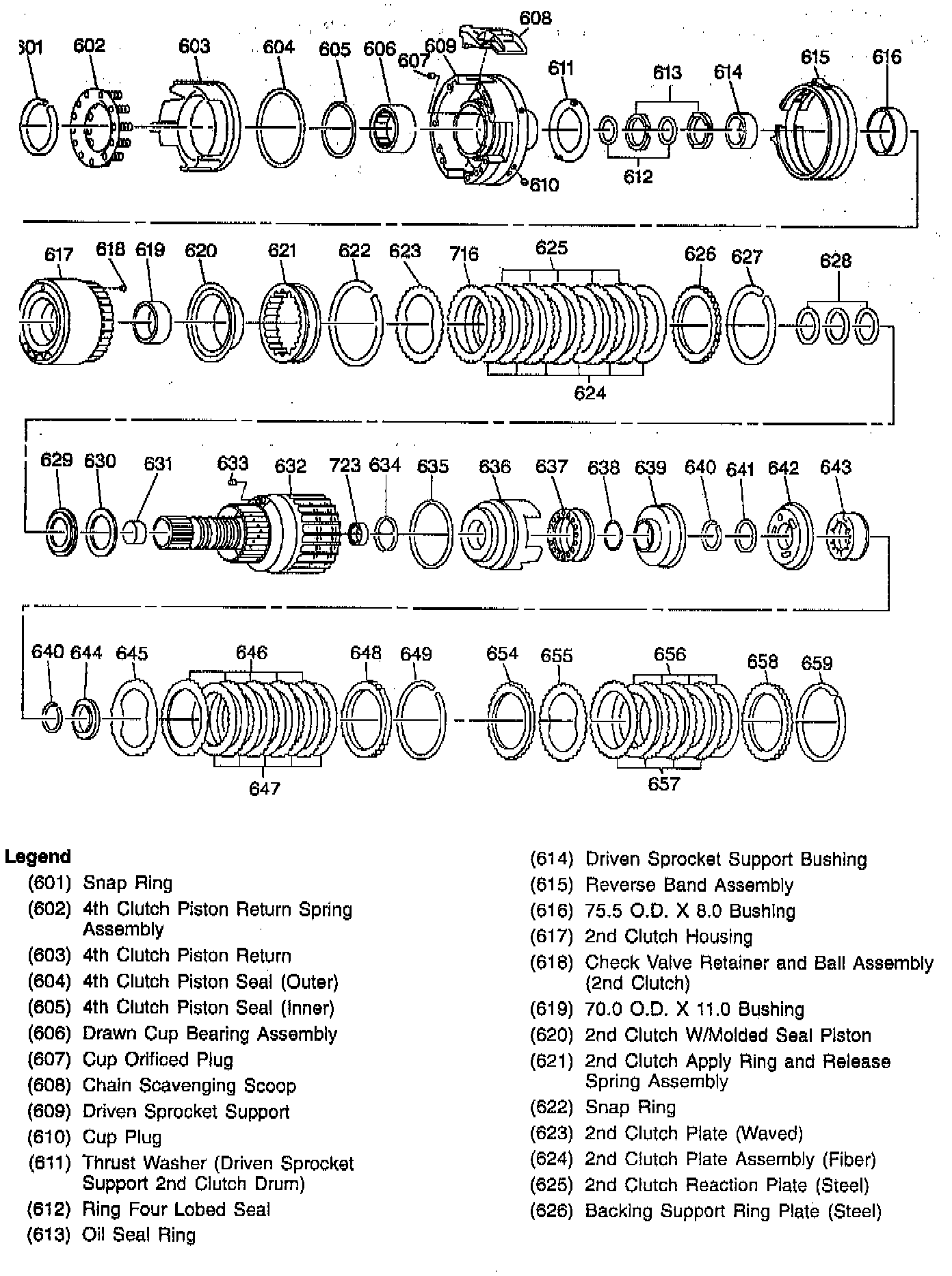

Part 1 Of 2:



Part 2 Of 2:
