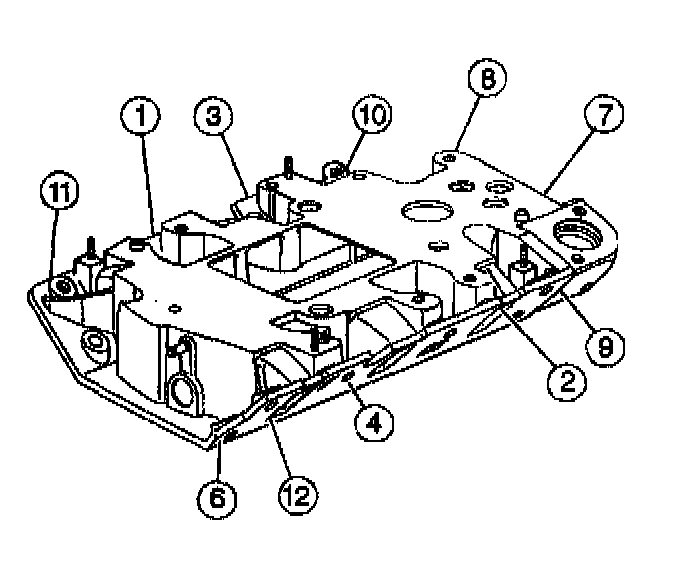

Lower Intake Manifold Torque and Sequence






Install the lower intake manifold bolts including the two hidden bolts.

Tighten the bolts in sequence to 15 Nm (11 ft. lbs.).
