Console Replacement

REMOVAL PROCEDURE





1. Remove the retainer clip from the shift control handle.
2. Disconnect the enhanced traction system (ETS) wire connector and pull the wire through the shift boot.
3. Remove the shift control handle.

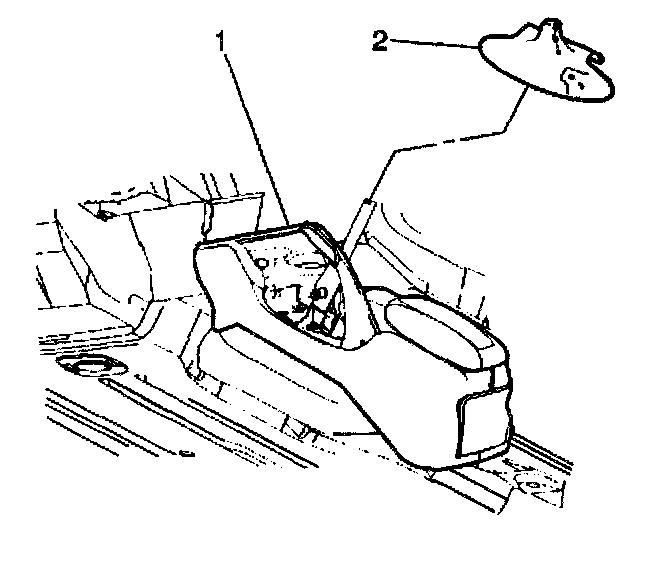

4. Remove the shift boot (2).





5. Remove the console compartment liner (1).

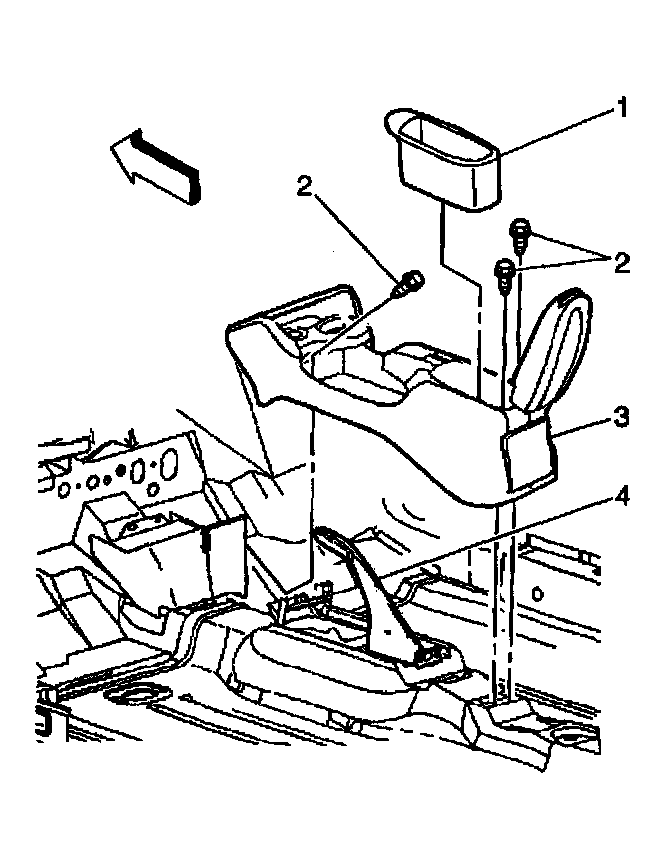

6. Remove the screws (2).
7. Remove the console (3).

INSTALLATION PROCEDURE





1. Install the console (3).
2. Install the screws (2).
3. Install the console compartment liner (1).





4. Install the shift boot (2).
5. Pull the ETS wire through the shift boot and connect the ETS wire to the connector.
6. Install the shift control handle.
7. Install the shift control handle retainer.
