Home >> Pontiac >> 1998 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Pump

Brake Fluid Pump

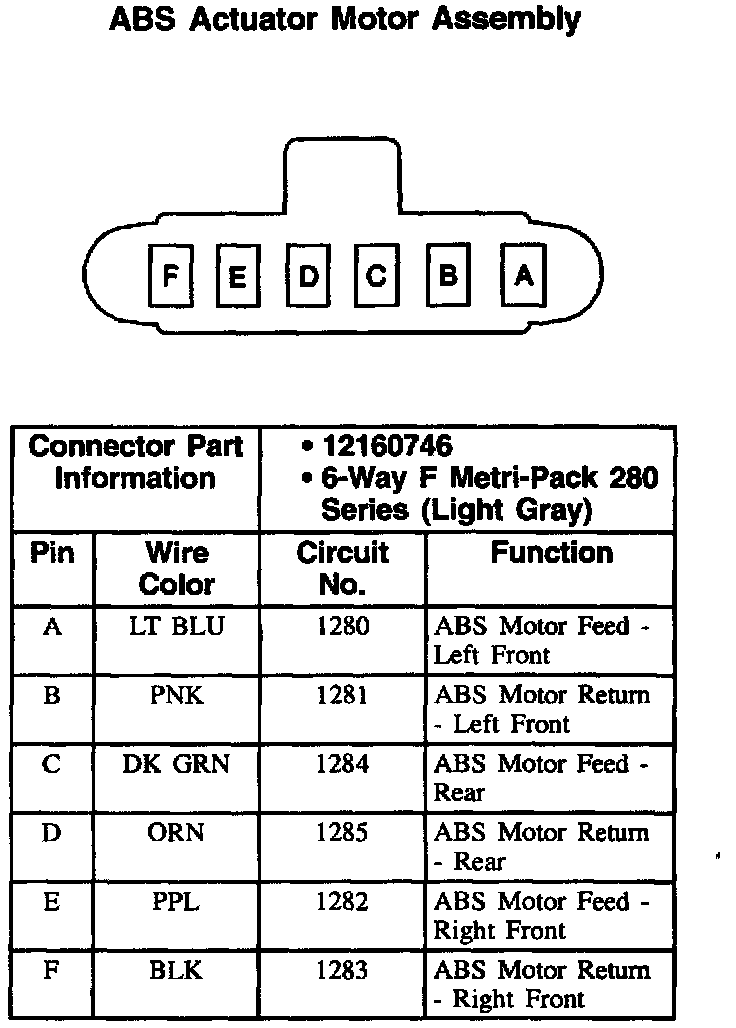

ABS Actuator Motor Assembly:
