Engine Flywheel Removal
Engine Flywheel Removal

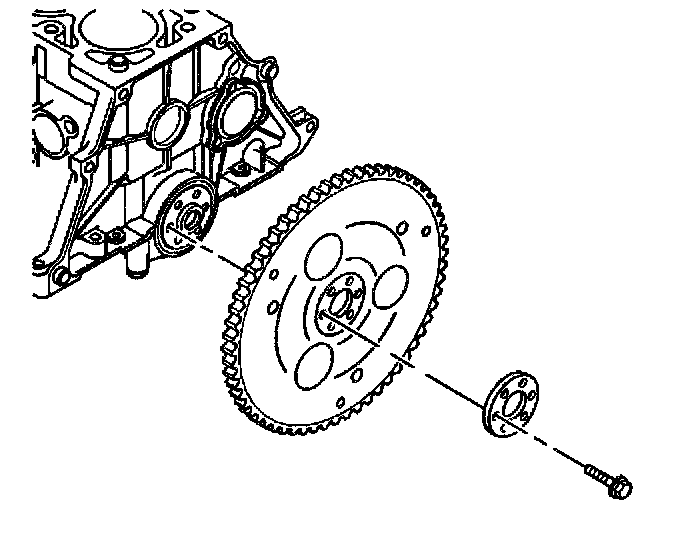

ENGINE FLYWHEEL REMOVAL
1.
Remove the flywheel bolts.
2.
Remove the flywheel spacer if a flywheel spacer is used.
IMPORTANT:
If the flywheel is cracked or damaged replace the flywheel.
3.
Remove the flywheel.
