Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block I/P Application Table
Fuse Block I/P Application Table

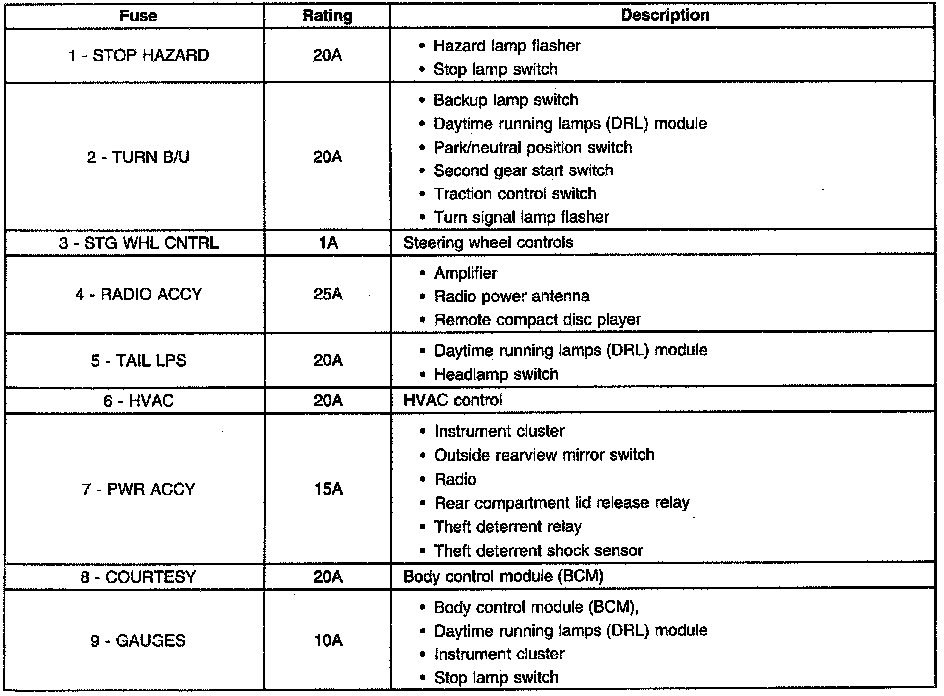

Fuse Block Application Table (Part 1 Of 2):

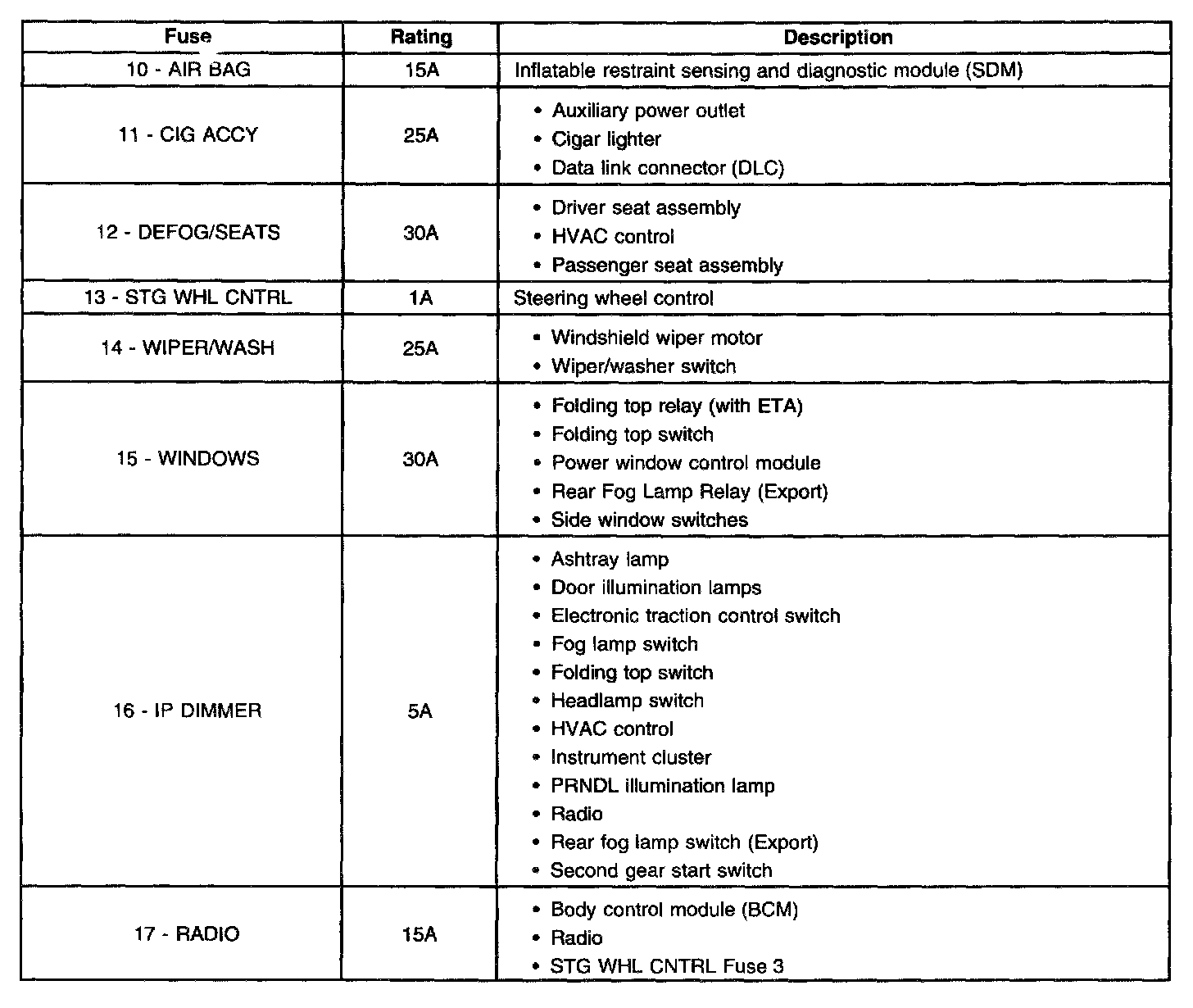

IP Fuse Block (Part 2 Of 2):
