Starter Relay: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.




1. Disconnect the negative battery cable.

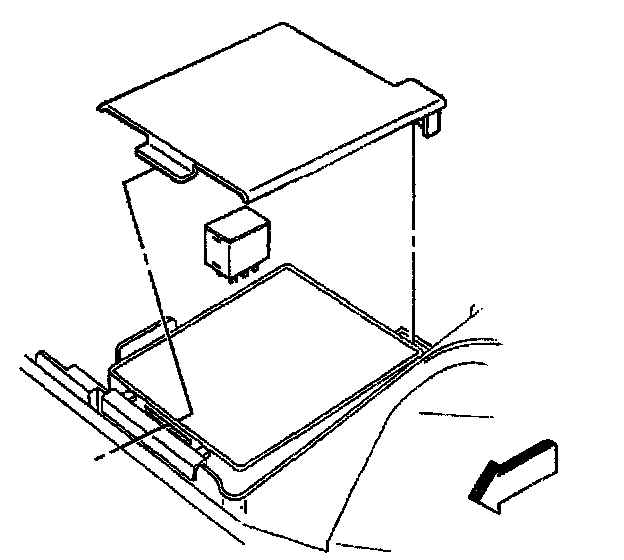

2. Open and remove the cover to the number 2 underhood electrical center.
3. Remove the starter motor relay.

INSTALLATION PROCEDURE




1. Install the starter motor relay.
2. Install and close the cover on the number 2 underhood electrical center.




3. Connect the negative battery cable.
