Front Camber Adjustment

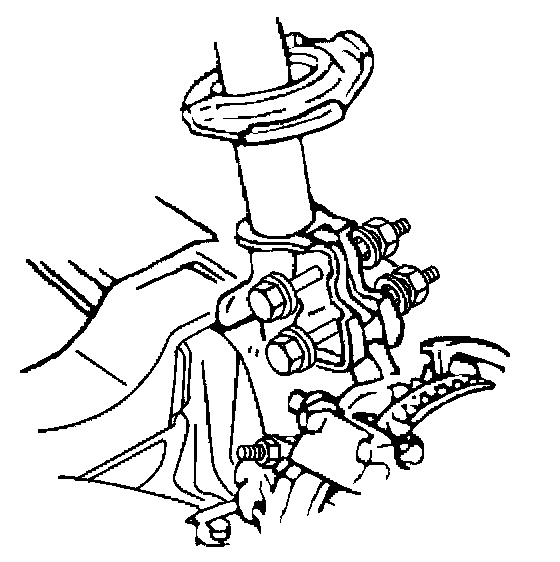

1. Reach around the tire, using the appropriate extension and socket.





2. Loosen both strut to knuckle nuts just enough to allow for movement.
3. If the strut has not been modified previously, perform the following steps before continuing with the wheel alignment:
3.1. Disconnect the strut from the knuckle.
3.2. File the lower hole until the outer flange slot matches the inner flange slot.
3.3. Connect the strut to the knuckle.

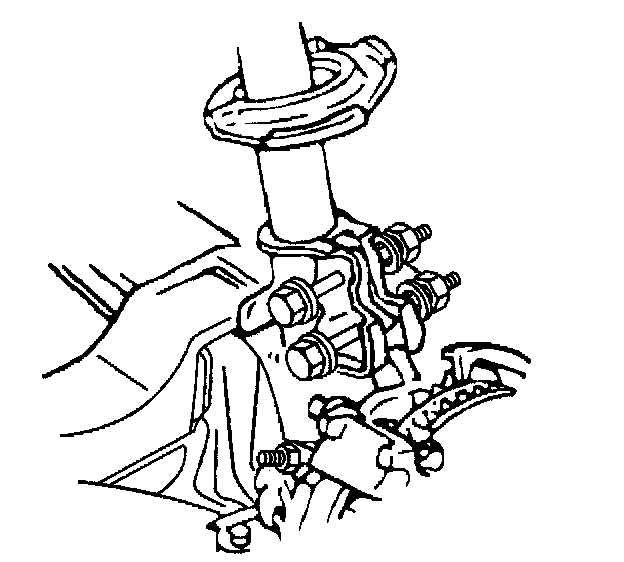

4. Adjust the camber to specification by moving the top of the wheel in or out.





5. Tighten the strut to knuckle nuts.
Tighten the nuts to 180 Nm (133 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.
