Shift Solenoid Position Sensor/Switch

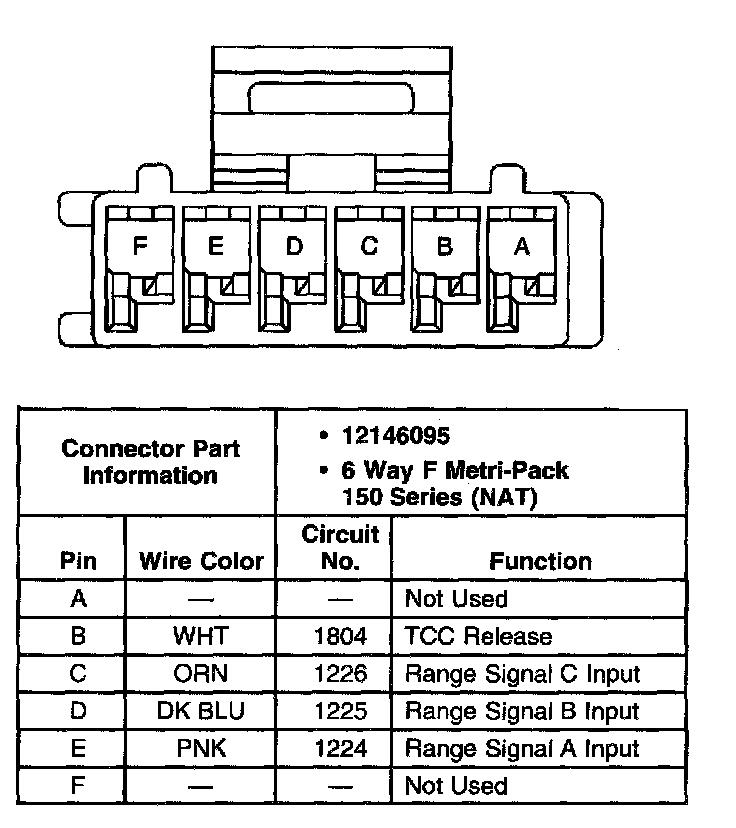

AUTOMATIC TRANSMISSION FLUID PRESSURE (TFP) MANUAL VALVE POSITION SWITCH CONNECTOR WIRING HARNESS SIDE
