Home >> Pontiac >> 1999 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Cell 44: Power, Ground, Serial Data and EBTCM

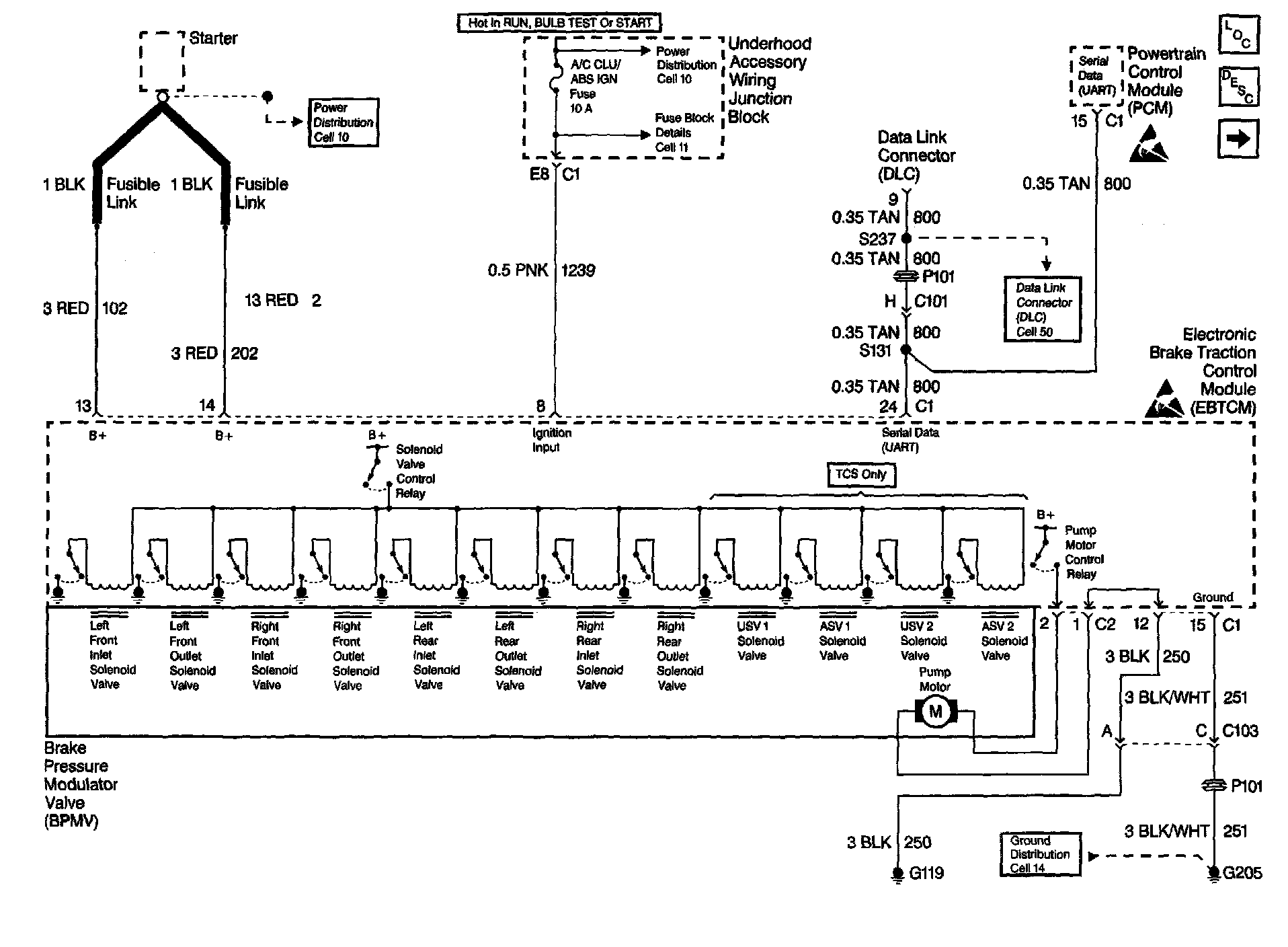

Cell 44: Power, Ground, Serial Data and EBTCM
