Steering Mounted Controls Transmitter: Service and Repair

REMOVAL PROCEDURE

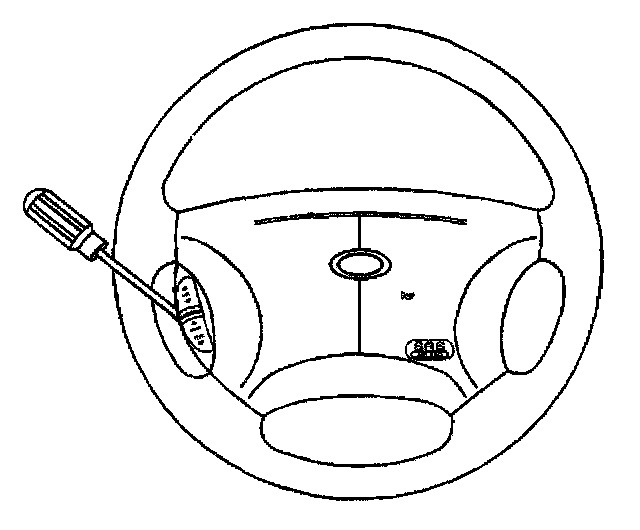

1. Remove the steering wheel control switches using a small flat bladed tool.

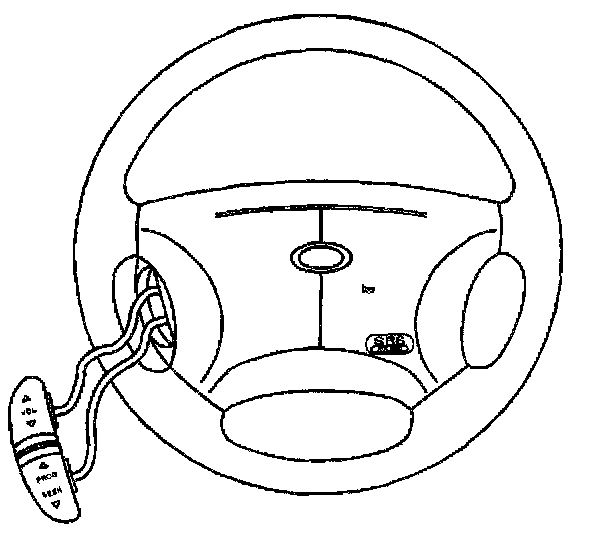

2. Disconnect the electrical connectors.

INSTALLATION PROCEDURE



1. Connect the electrical connectors.
2. Install the steering wheel control switches by pressing into place until fully seated.
