Home >> Pontiac >> 1999 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Convenience Connector C1

Convenience Connector C1

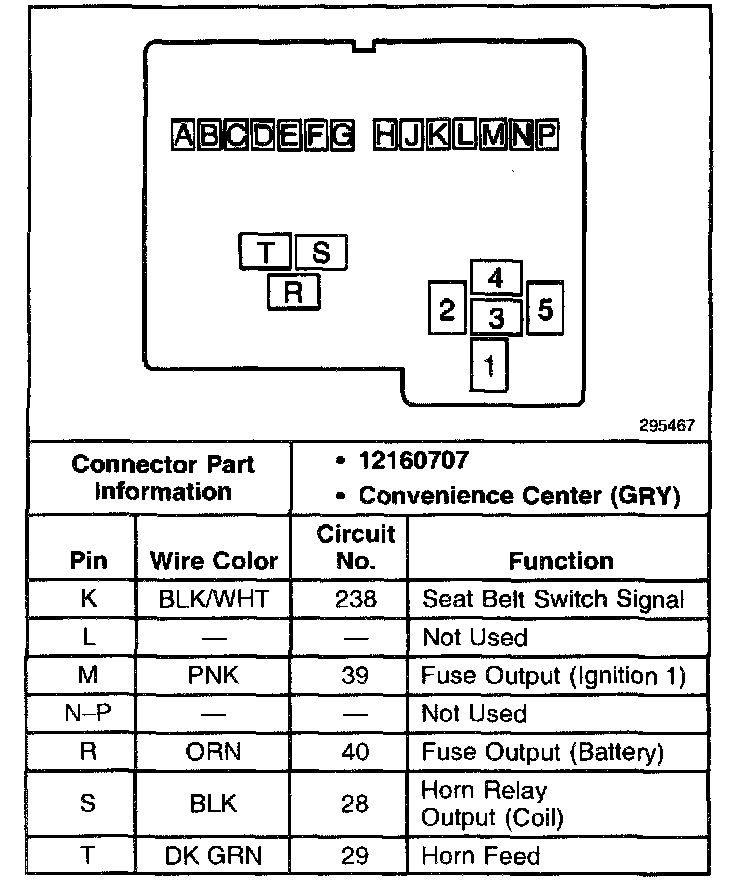

Convenience Connector C1 (Part 1 Of 2):

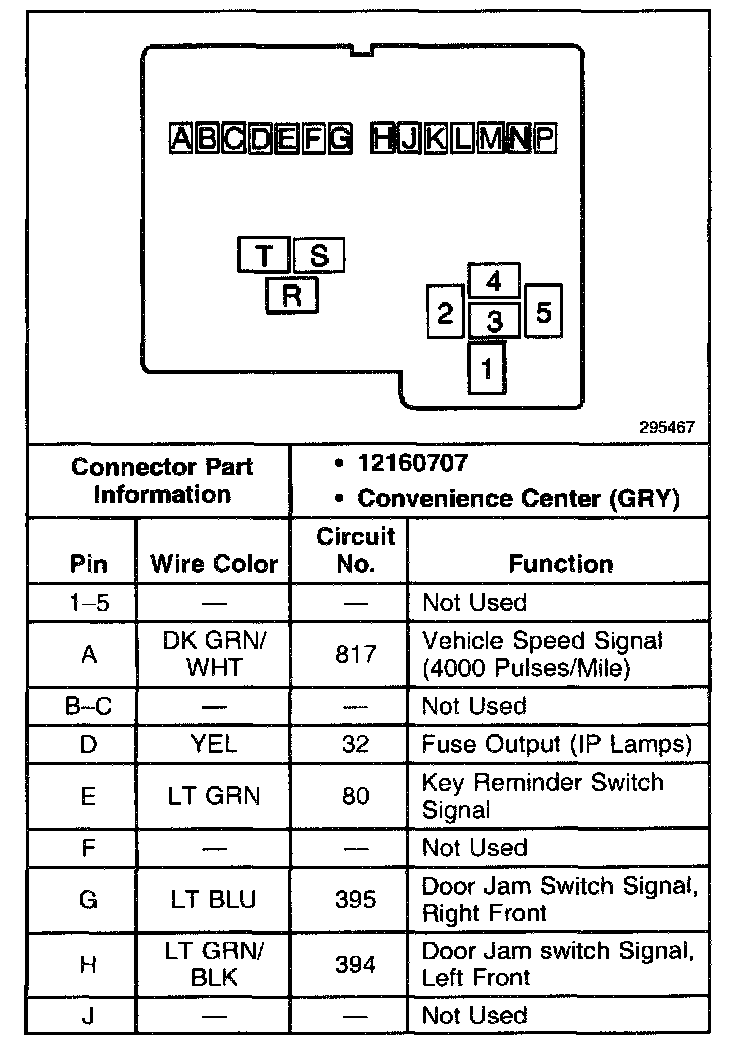

Convenience Connector C1 (Part 2 Of 2):
