Home
>>
Pontiac
>>
1999
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
System Diagram
>>
Left
Left

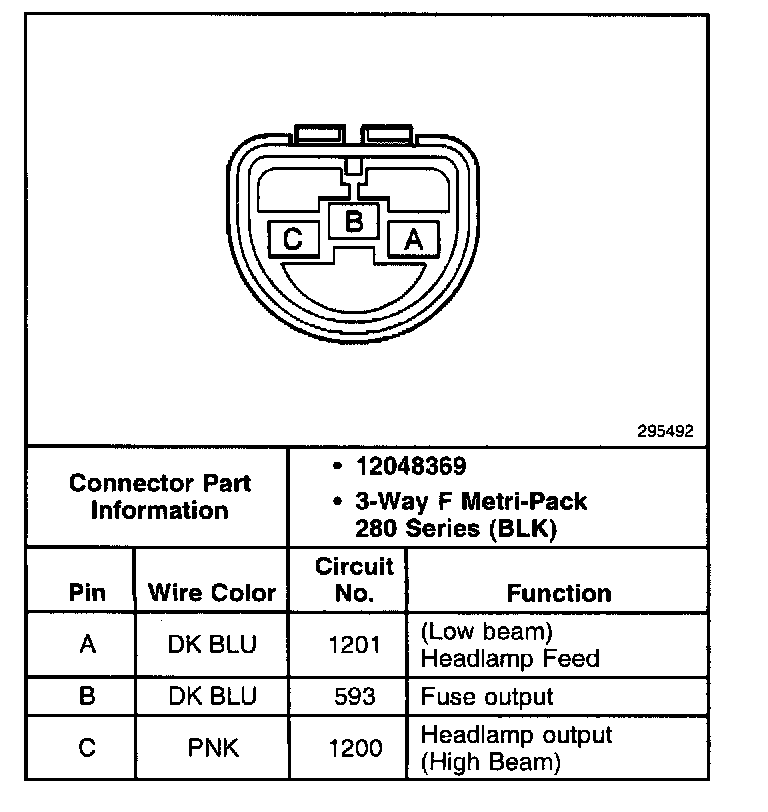

Headlamp Assembly, Left:
